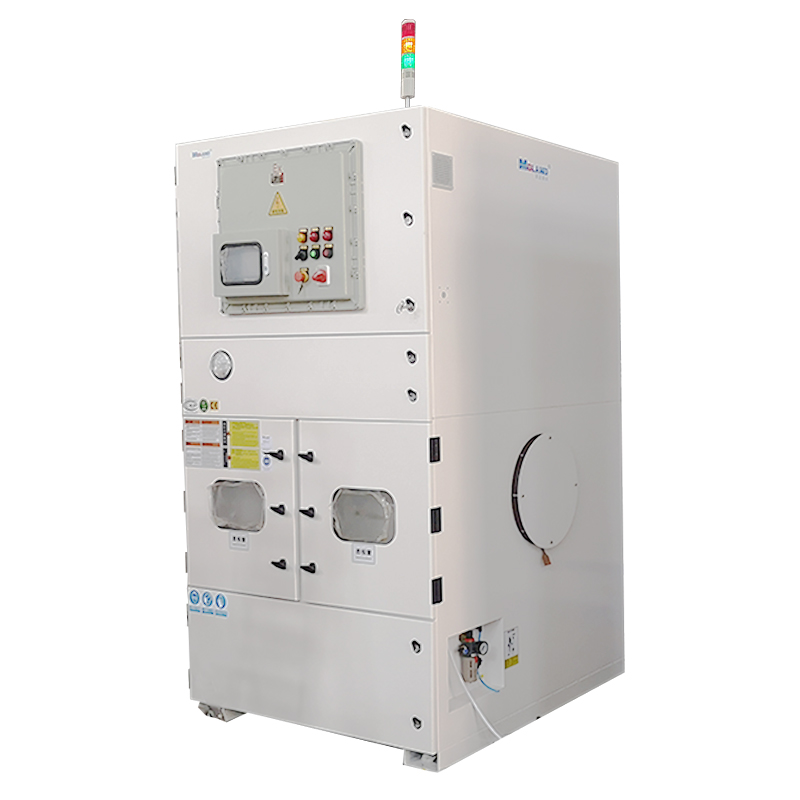

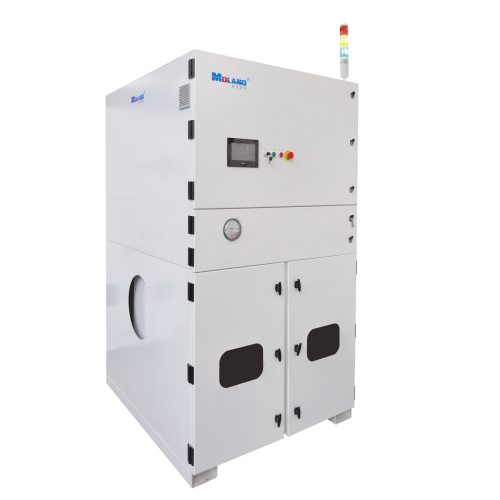

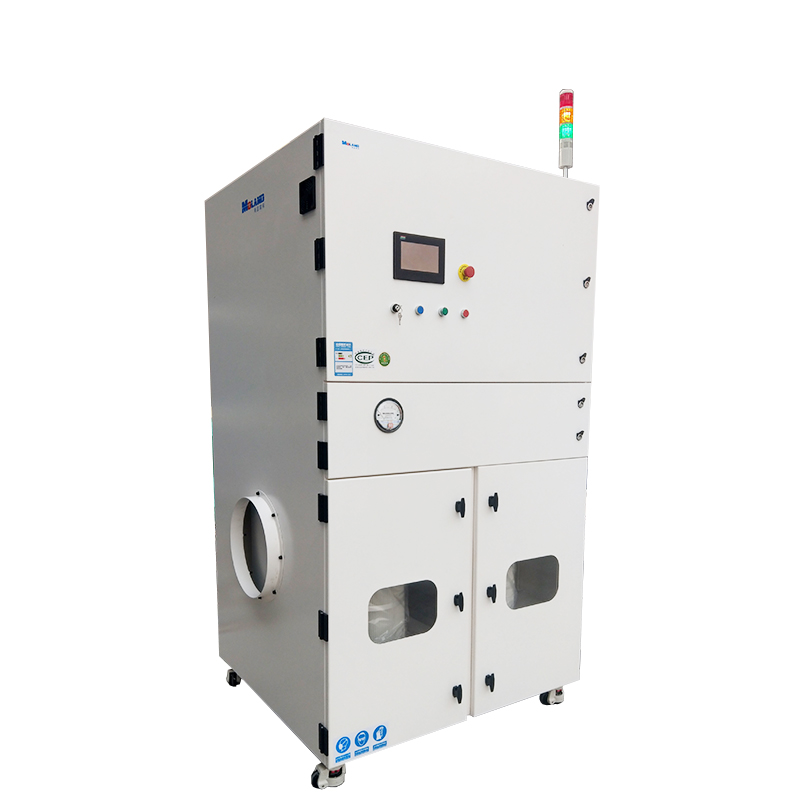

MLWF600-6T/9T

Stationary Dust Collector

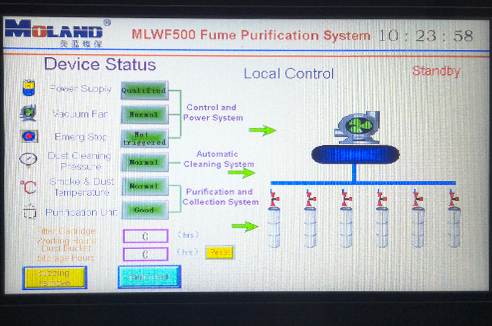

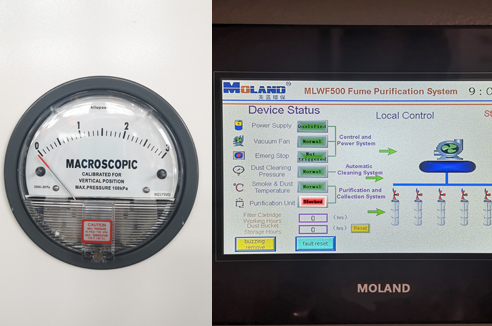

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.

  • Motor Power:5.5kw
  • Air Volume:5000-7000m³/h

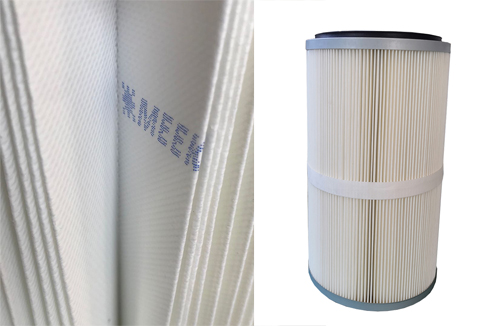

  • Toray flame-retardant PTFE coated filter
  • Filtration Accuracy: 0.3μm, 99.9%

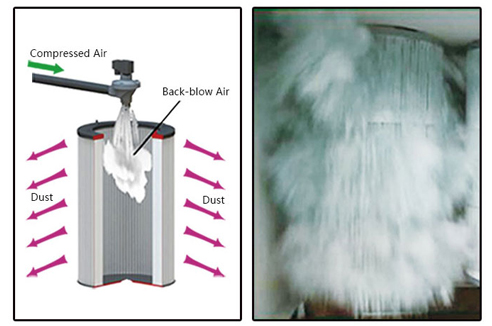

  • Automatic pulse jet cleaning
  • For welding, laser cutting, plasma cutting, etc.
Get In Touch
  • Free combination on demand to meet various working conditions

Wall Mounted Fume Extractor

This MLWF200-BG Wall Mounted Fume Extractor provides the ultimate in flexibility for removing fumes and dust from your work environment. It is equipped with a high-efficiency fan to increase CFM at the extraction point. The large filtering area AHLSTROM filter makes the filteration effect better.

Tech Specs

Product model MLWF600-6T MLWF600-9T
Power 5.5kw 5.5kw
Working Voltage 380v/50Hz 3P 380v/50Hz 3P
Air volume 5000-7000m³/h 5000-7000m³/h
Filter accuracy 0.3μm 0.3μm
Filter material Imported flame-retardant PTFE coated polyester fiber
Cleaning Mode Automatic pulse jet cleaning
Filter area 66m² 99m²
Noise 75±3dBA 75±3dBA
Dimensions 1240*1130*2350mm 1240*1470*2350mm
Weight 660Kg 800Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

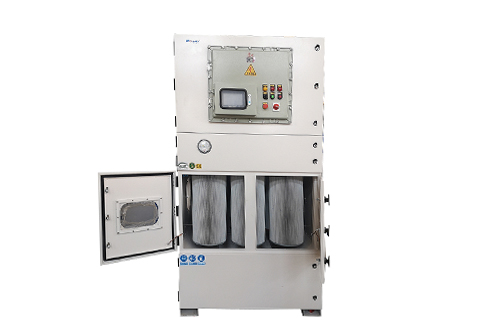

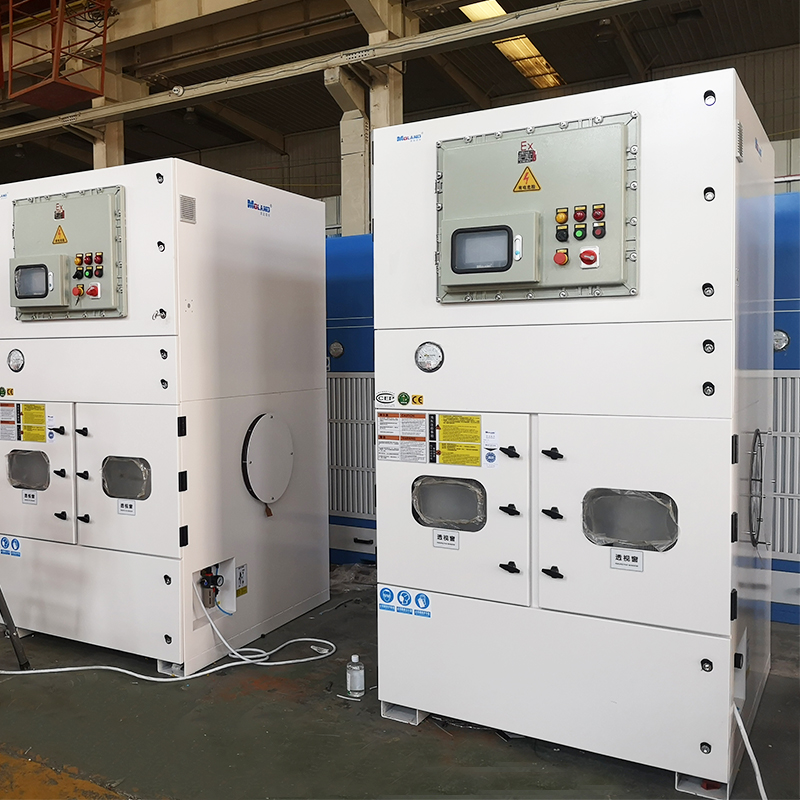

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Wall-mounted Welding Fume Extractor

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. Arm size is 200mm*3m, or customized.

  • Nano Filter


    1. Imported Ahlstrom brand flame-retardant nano fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9% and large filtering area, it can easily achieve standard emission of purified air.

  • Independent Electric Control


    1. Independent electric control box, easy to install and operate.
    2. Button operation, simple and easy to use.
    3. Emergency stop button + alarm function ensures your safe production.
