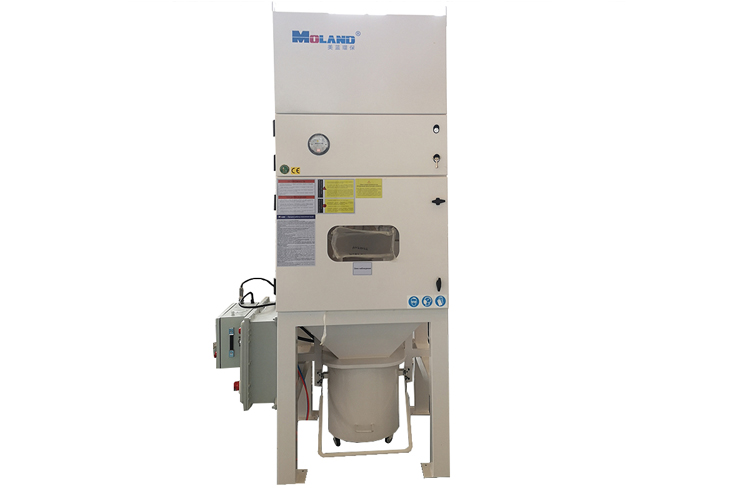

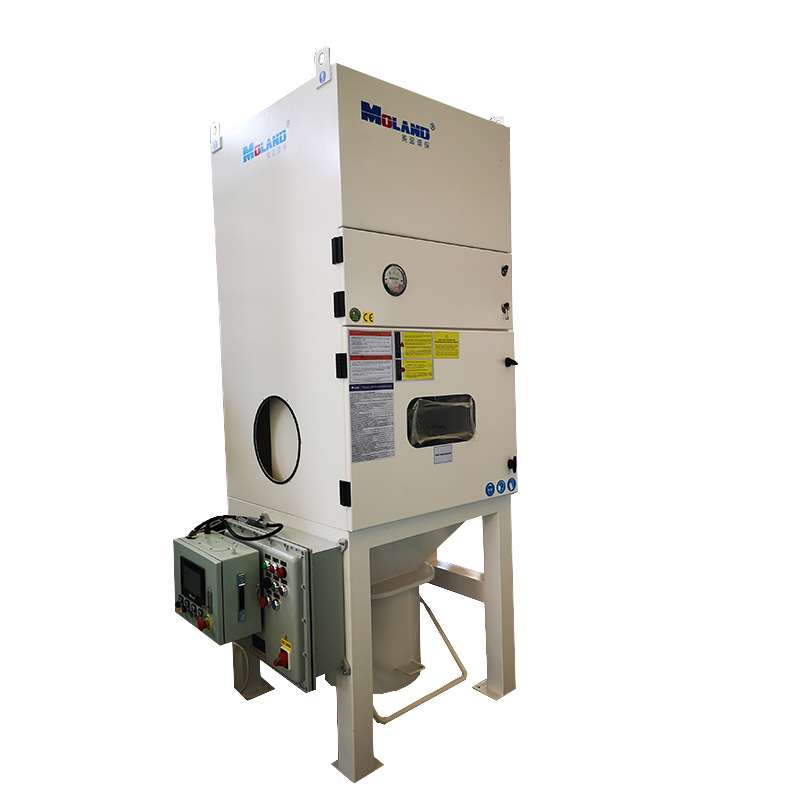

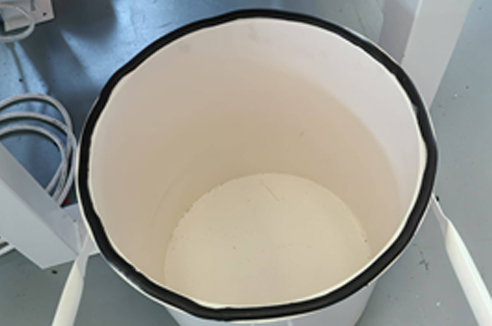

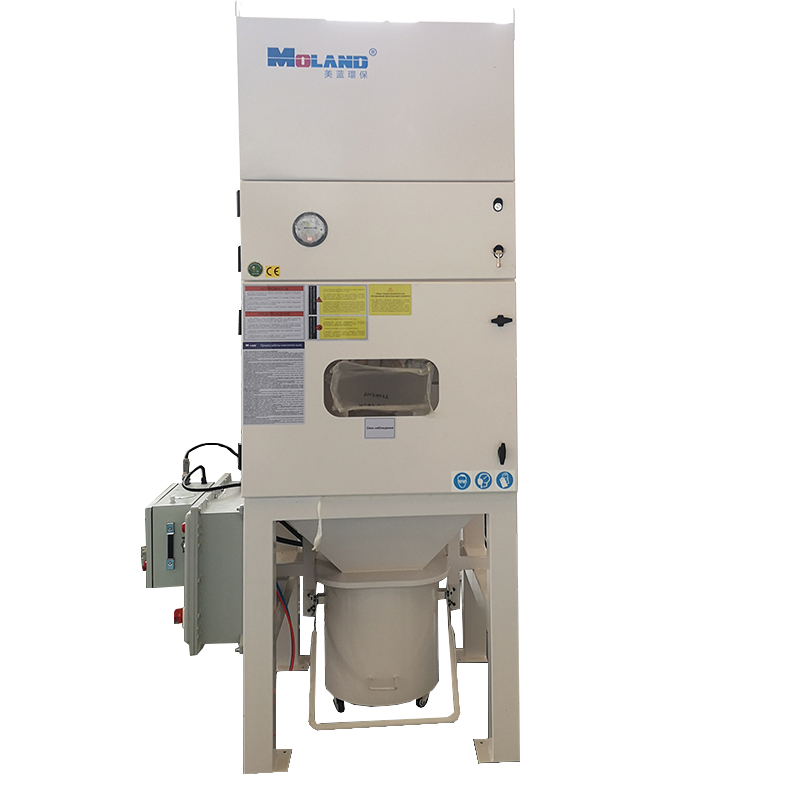

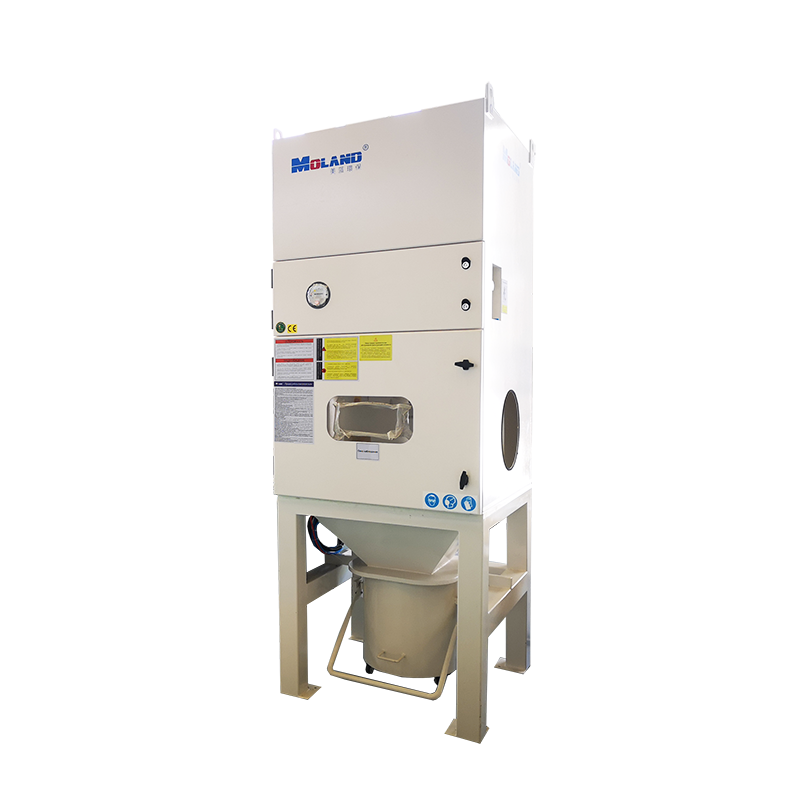

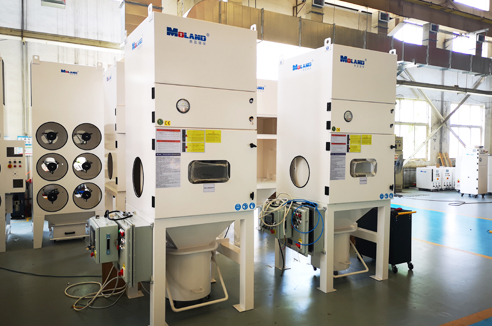

MLWF400 Dust Bin

Stationary Dust Collector

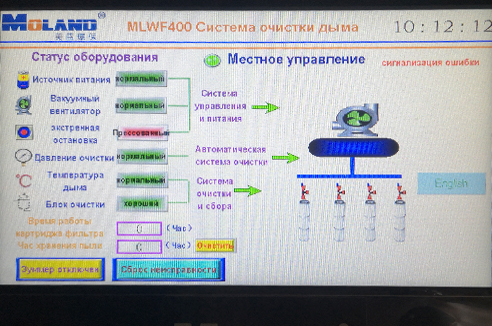

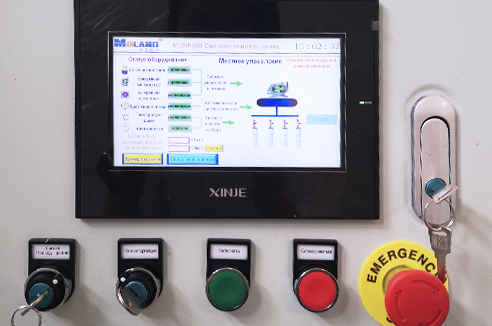

The MLWF series cartridge filter dust collectors are equipped with a reverse jet pulse filter cleaning system and high-efficiency filters, which can provide optimal performance and filter life, allowing your workers to have a healthy working environment. Intelligent control system can display the equipment operating status in real time, maintenance warning, and fault alarm, to protect your safe production.

  • Motor Power:3kw
  • Air Volume:3500-4500m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Filter Area: 44m²
  • Spark Arrestor: minimize the fire risk during the welding processes.
Get In Touch Brochure
  • Free combination on demand to meet various working conditions

Wall Mounted Fume Extractor

This MLWF200-BG Wall Mounted Fume Extractor provides the ultimate in flexibility for removing fumes and dust from your work environment. It is equipped with a high-efficiency fan to increase CFM at the extraction point. The large filtering area AHLSTROM filter makes the filteration effect better.

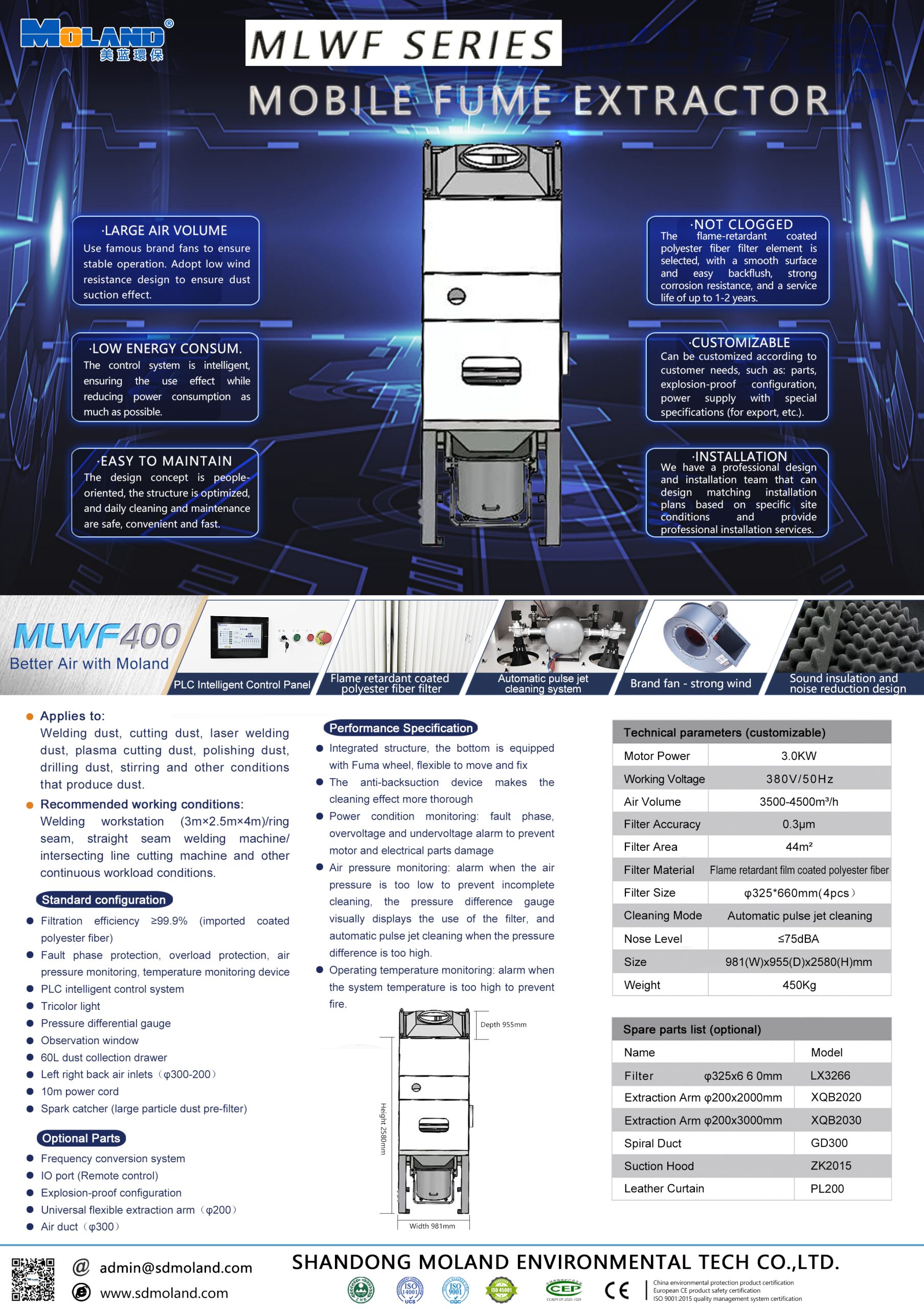

Tech Specs

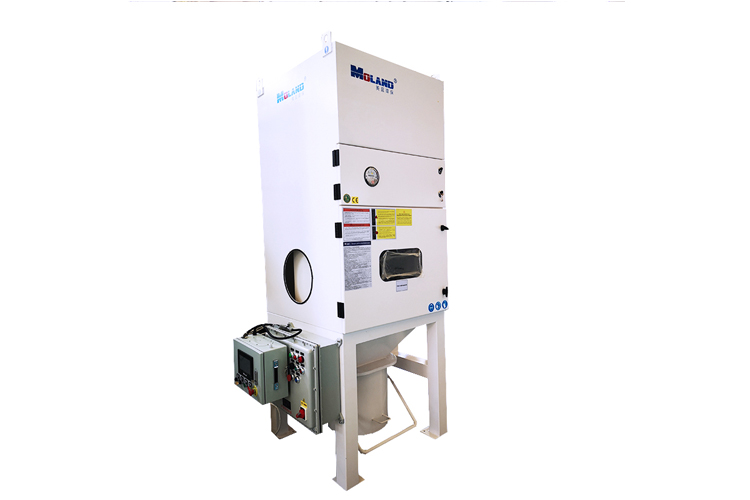

Product model MLWF400 Dust Bin
Power 3kw
Working Voltage 380v/50Hz
Air volume 3500-4500m³/h
Filter accuracy 0.3μm
Filter material Imported flame-retardant coated polyester fiber

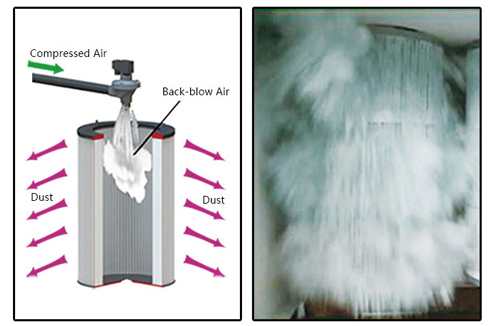

Cleaning Mode Automatic pulse jet cleaning
Filter area 44m²
Noise 75dBA
Dimensions 981*955*2580mm
Weight 450Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Wall-mounted Welding Fume Extractor

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. Arm size is 200mm*3m, or customized.

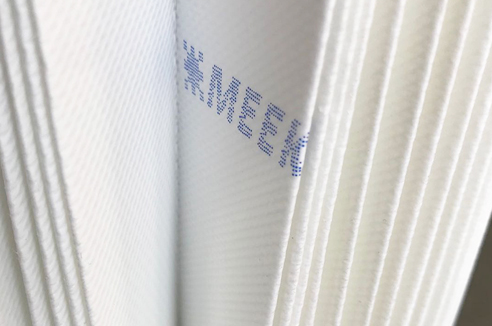

  • Nano Filter


    1. Imported Ahlstrom brand flame-retardant nano fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9% and large filtering area, it can easily achieve standard emission of purified air.

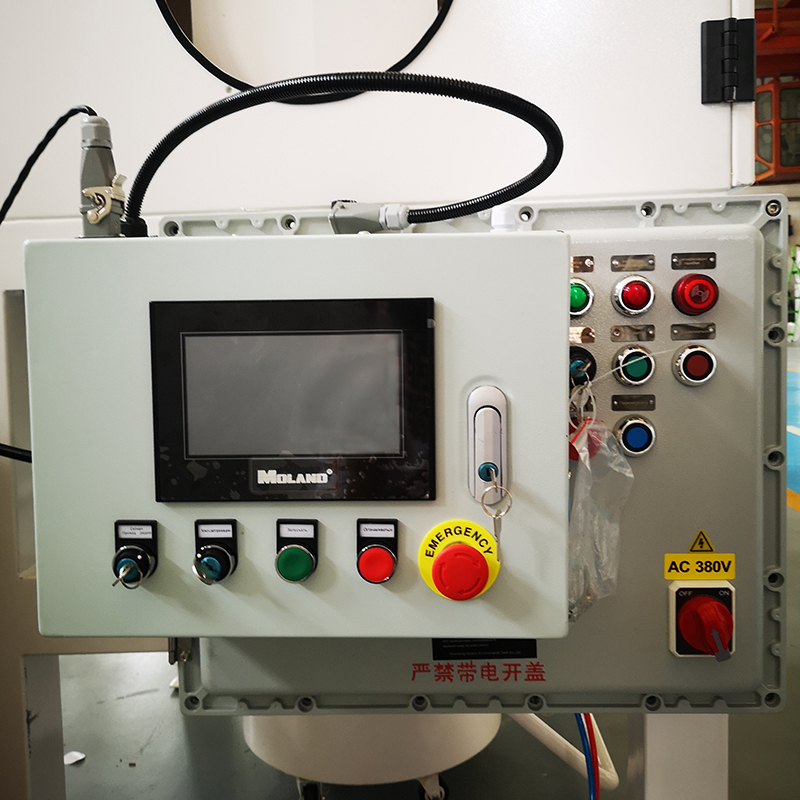

  • Independent Electric Control


    1. Independent electric control box, easy to install and operate.
    2. Button operation, simple and easy to use.
    3. Emergency stop button + alarm function ensures your safe production.
