MLWF21/40

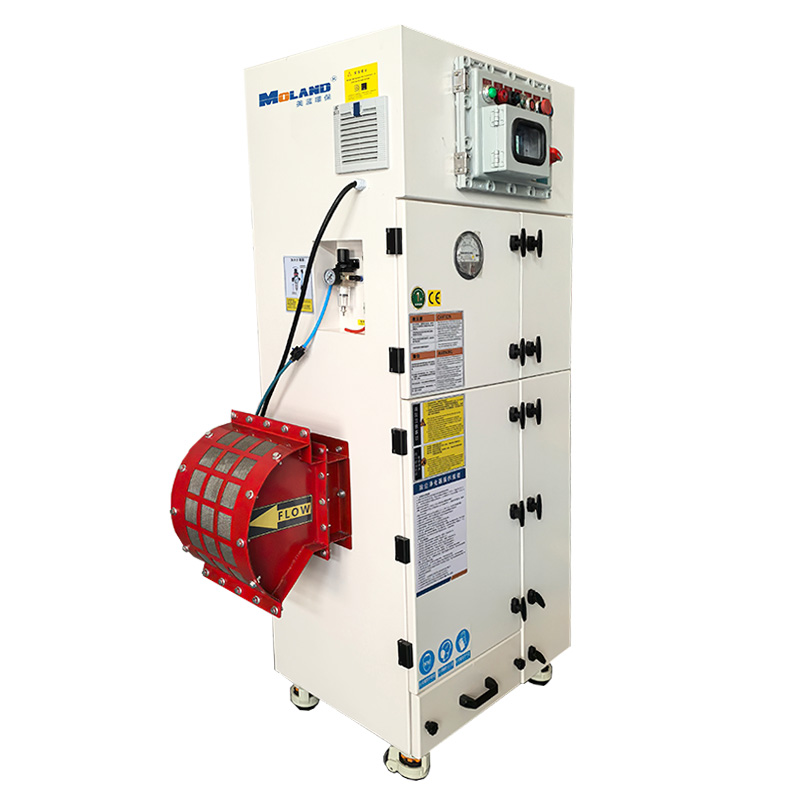

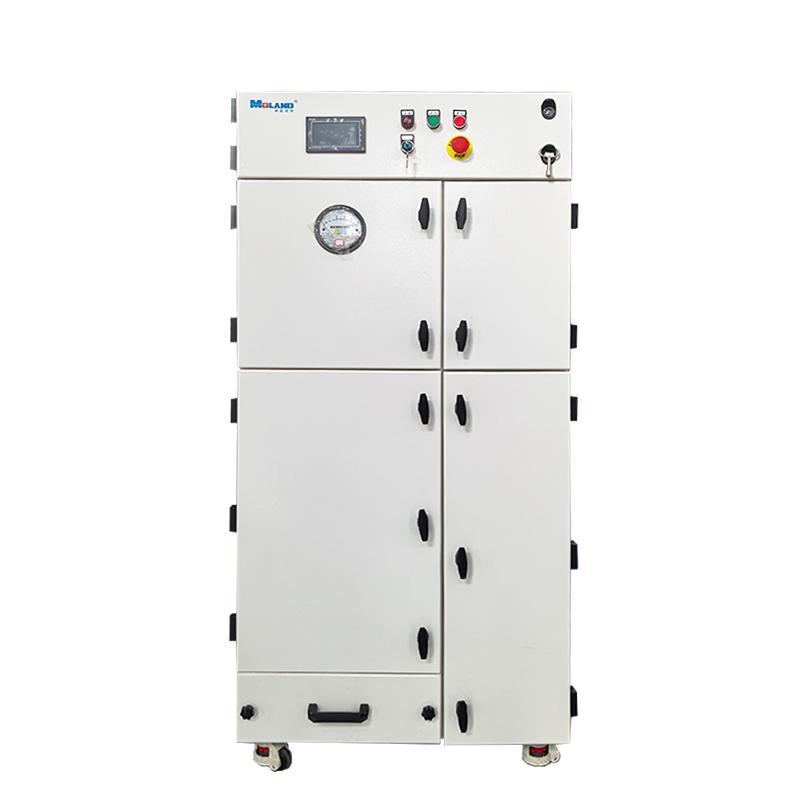

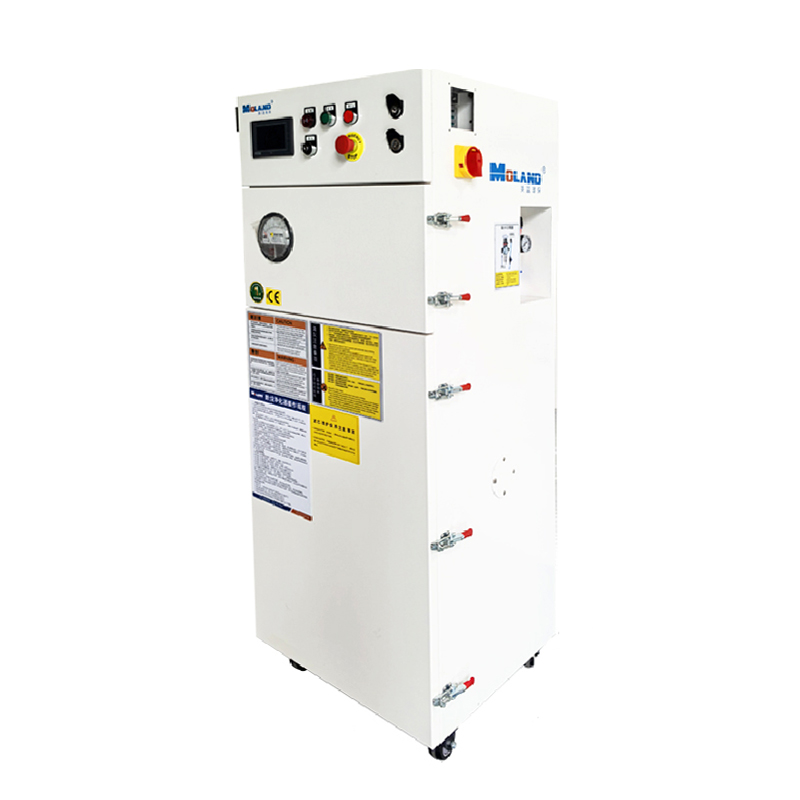

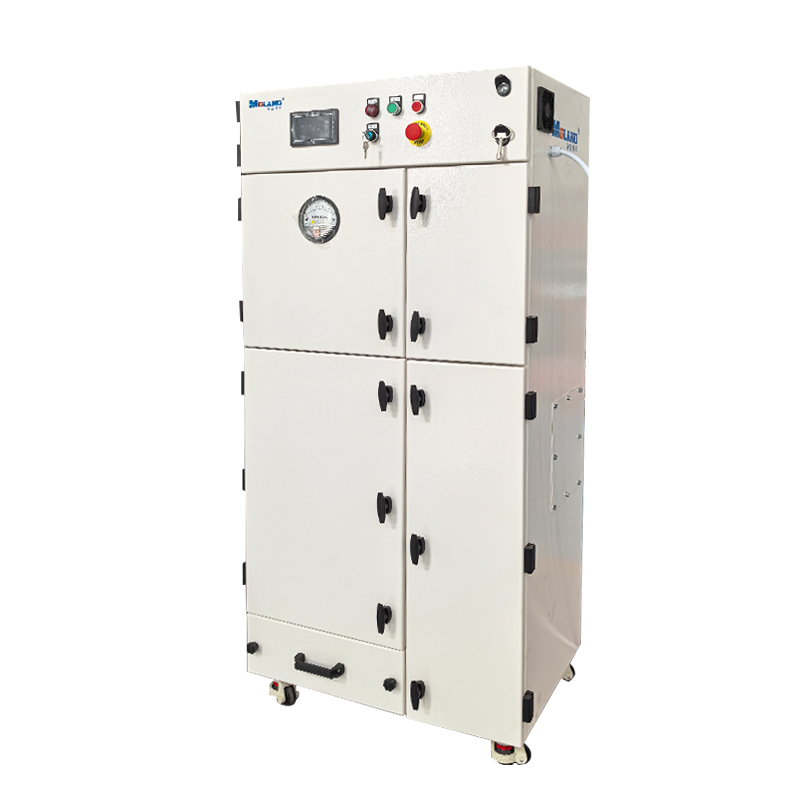

Mobile Fume Extractor

The MLWF21/40 is specifically designed for robotic welding, featuring a compact body that fits seamlessly into robotic arm workstations and delivers powerful, high-pressure suction. Its flexible hose and small nozzle ensure close contact with the welding point for effective dust collection at the source. Equipped with a flame-retardant filter and pulse cleaning system, it achieves a 99.9% filtration efficiency for 0.3um particles, minimizing the need for frequent filter changes and reducing maintenance effort. It's the perfect dust collection partner for robotic welding!

  • Motor Power:1.2/2.4kw
  • Air Volume:210/210~420m³/h
  • Flame-retardant PTFE coated polyester fiber filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding robots, environmentally friendly welding torches, handheld grinding/polishing tools, etc.
Get In Touch
  • Free combination on demand to meet various working conditions

High Negative Pressure Fume Extractor

Boost your robotic welding efficiency without compromising air quality. The compact MLWF21/40 fume extractor fits seamlessly into your cell, delivering high-vacuum suction to capture fumes at the weld point. Smart pulse cleaning ensures minimal downtime.

Tech Specs

Product model MLWF21 MLWF40
Power 1.2kw 2.4kw
Working voltage 220v/50Hz 1P 220v/50Hz 1P
Air volume 210m³/h 210~420m³/h
Air pressure 22000Pa 21.5Kpa
Filter accuracy 0.3μm 0.3μm
Filter material Flame-retardant PTFE coated polyester fiber
Cleaning mode Automatic pulse jet cleaning
Filter area 11m² 11m²
Noise 75±3dBA 75±3dBA
Dimensions 570*620*1500mm 780*680*1700mm
Weight 150Kg 230Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Robot Welding Fume Extractor

The MLWF21/40 robotic welding fume extractor is designed for the demands of robotic welding. Its high-vacuum power ensures no fume escapes, while the intelligent pulse cleaning system keeps filters performing at their best, reducing your maintenance burden. Keep your robot and your air clean.

  • Independent Electric Control


    1. Intelligent airflow control, adjustable on demand, precisely matching welding conditions.
    2. Fault alarm and real-time monitoring ensure safe production without interruption.

  • Automatic Pulse Jet Cleaning


    1. Automated pulse cleaning boosts filter lifespan by 30% and cuts maintenance time by 50%, ensuring consistent, hassle-free operation.

  • Flame-retardant Filter


    1. Imported flame-retardant polyester filter cartridges ensure high filtration precision and extended lifespan.
    2. Filtration efficiency of over 99.9% for 0.3um particles.

  • High Vacuum Fan


    1. High-pressure fans provide powerful suction, instantly capturing welding fumes and preventing even the smallest particles from escaping, thus efficiently purifying the workshop air.

  • Large Capacity Dust Bin


    1. Large-capacity dust drawer with anti-backflow design ensures thorough cleaning and easy disposal.

  • Explosion-proof Design


    1. Explosion-proof design ensures safe production in hazardous welding or polishing environments.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
