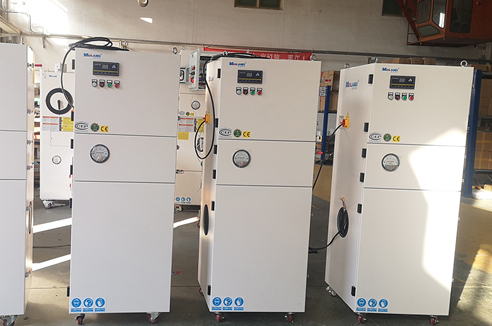

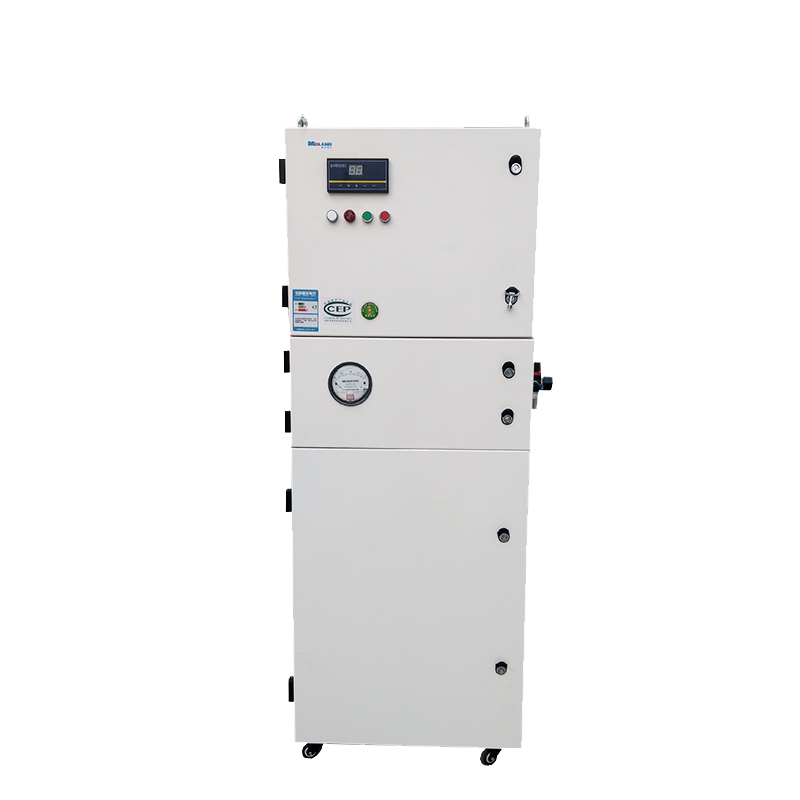

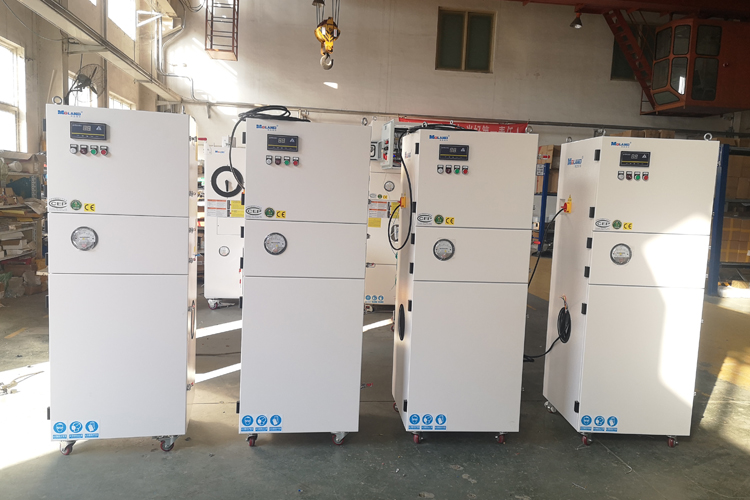

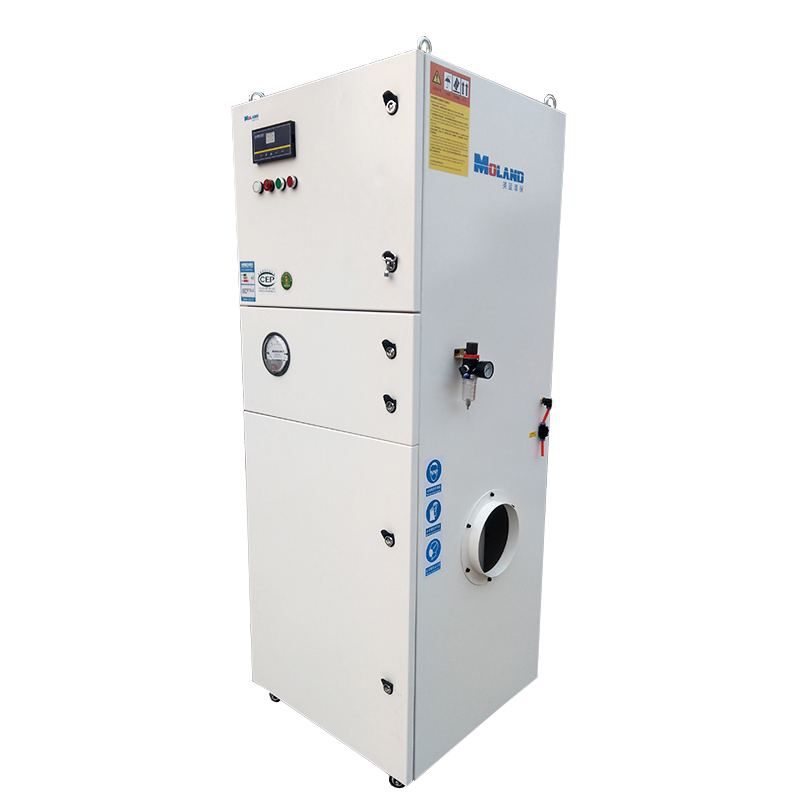

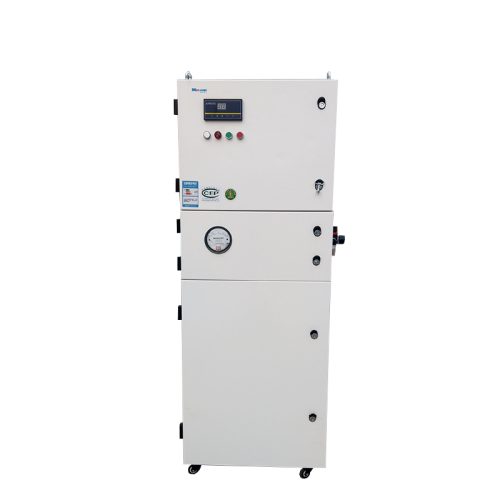

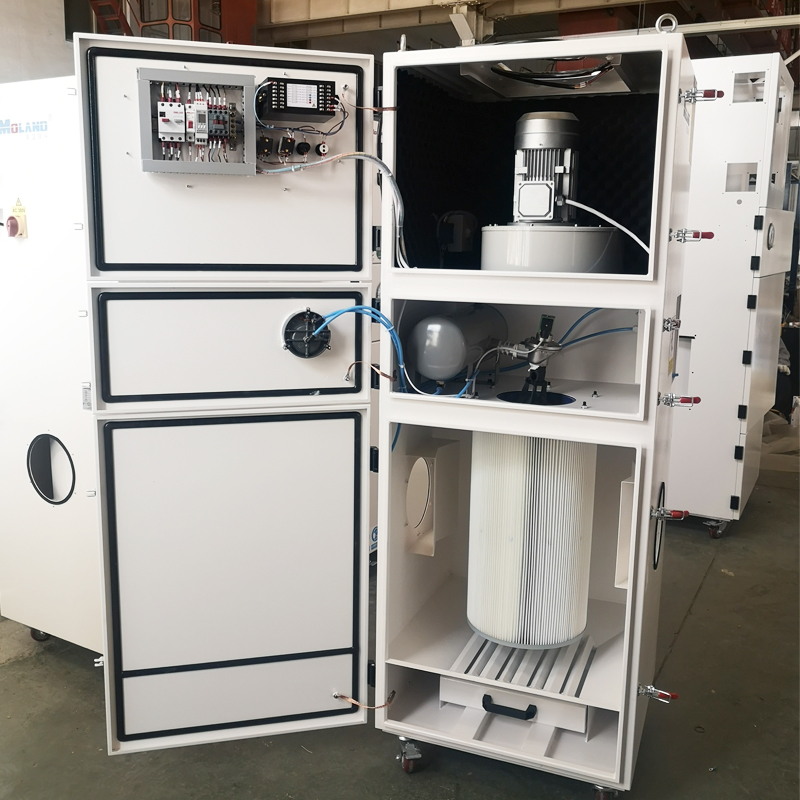

MLWF200F/MLWF300F

Mobile Fume Extractor

This MLWF series movable welding fume extractor is an economical and efficient product for cleaning and dedusting with automatic pulse jet cleaning system.

  • Motor Power：1.5/2.2KW
  • Air Volume:2500/3000m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Cleaning Mode: Automatic pulse jet cleaning
  • Designed for dry fume, smoke and dust collection
Get In Touch
  • Free combination on demand to meet various working conditions

Wall Mounted Fume Extractor

This MLWF200-BG Wall Mounted Fume Extractor provides the ultimate in flexibility for removing fumes and dust from your work environment. It is equipped with a high-efficiency fan to increase CFM at the extraction point. The large filtering area AHLSTROM filter makes the filteration effect better.

Tech Specs

Product model MLWF200F MLWF300F
Power(KW) 1.5 2.2
Working Voltage 380v/50Hz 3P 380v/50Hz 3P
Air volume(m³/h) 2500 3000
Filter accuracy 0.3μm 0.3μm
Filter material Imported flame-retardant PTFE coated polyester fiber
Cleaning Mode Automatic pulse jet cleaning
Filter area 11m² 11m²
Noise 72±3dBA 72±3dBA
Dimensions 630*650*1760mm 630*650*1760mm
Weight 200Kg 200Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

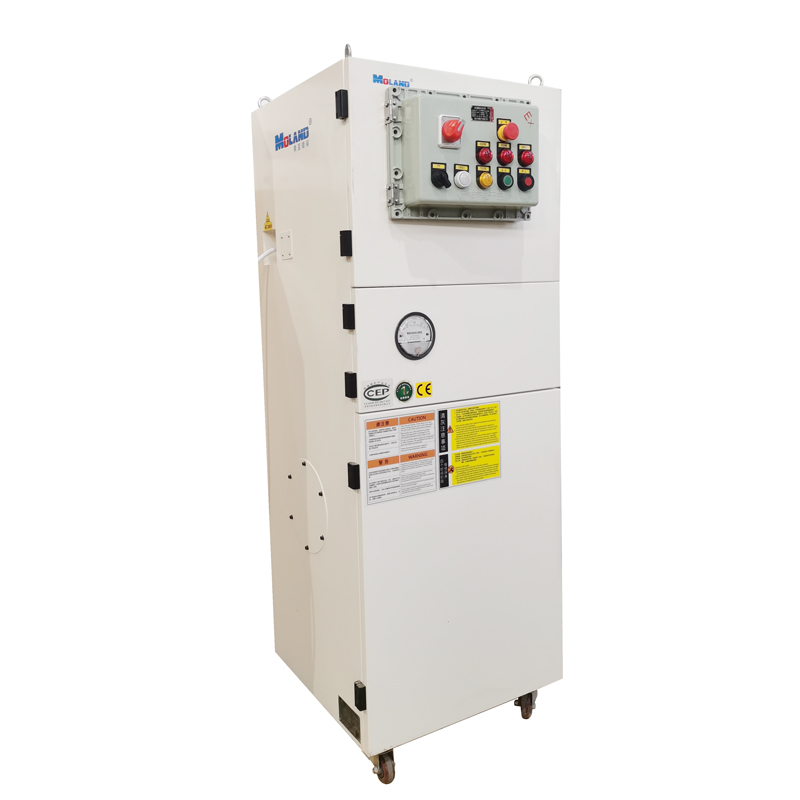

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Wall-mounted Welding Fume Extractor

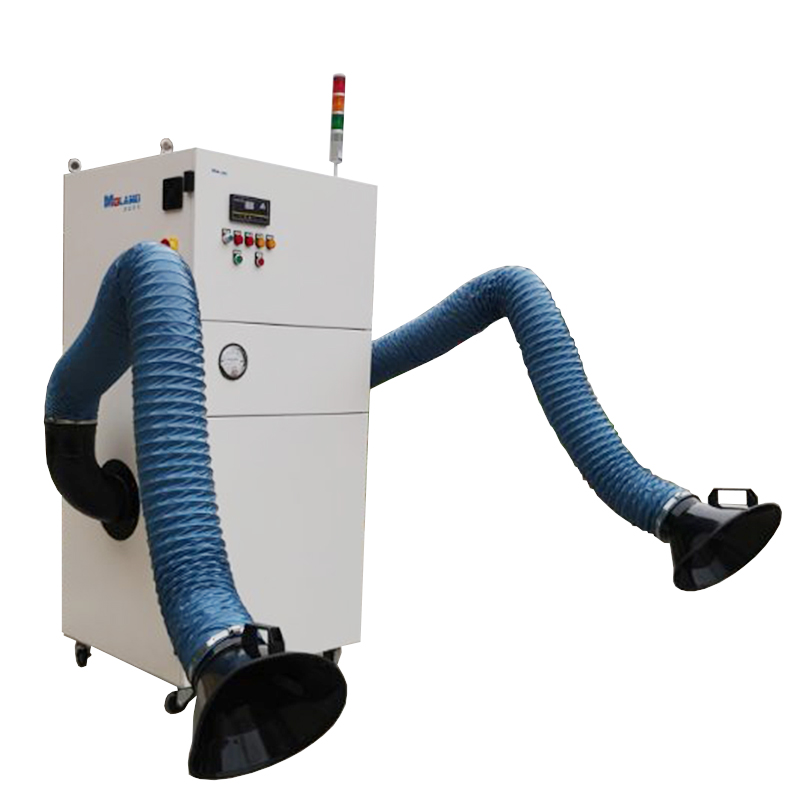

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. Arm size is 200mm*3m, or customized.

  • Nano Filter


    1. Imported Ahlstrom brand flame-retardant nano fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9% and large filtering area, it can easily achieve standard emission of purified air.

  • Independent Electric Control


    1. Independent electric control box, easy to install and operate.
    2. Button operation, simple and easy to use.
    3. Emergency stop button + alarm function ensures your safe production.
