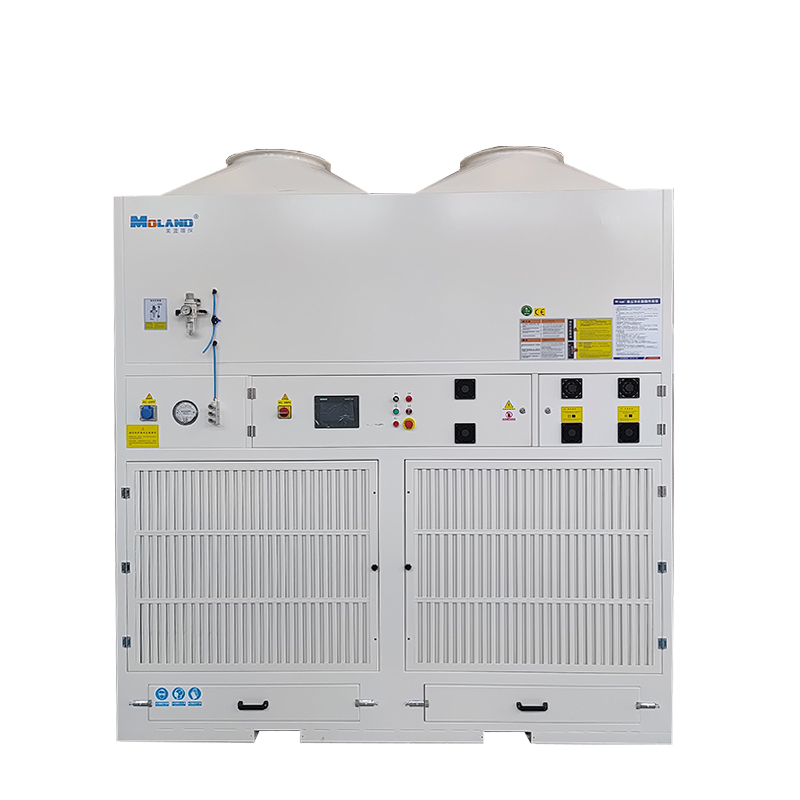

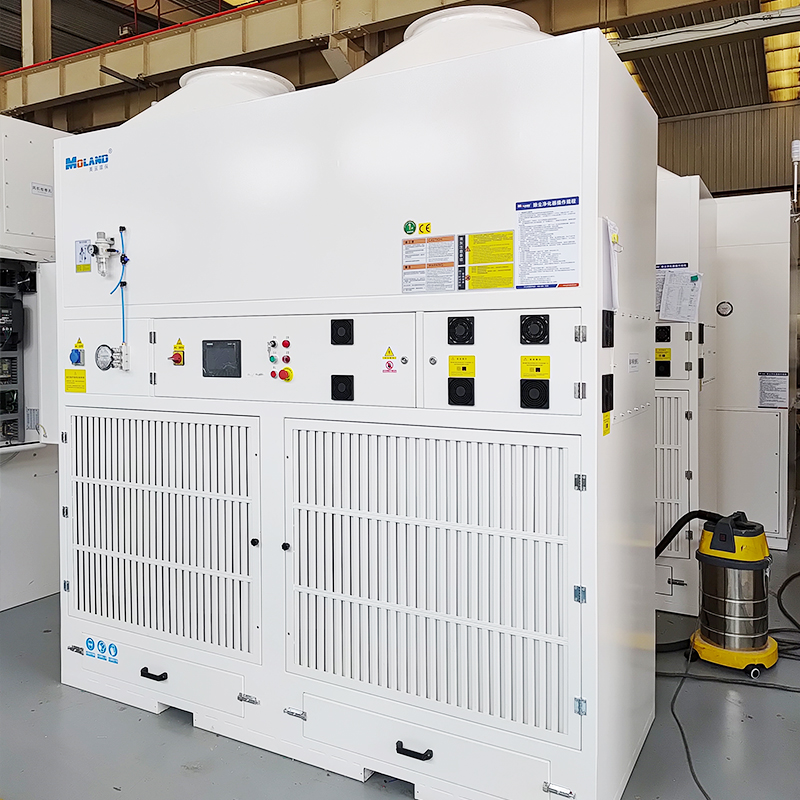

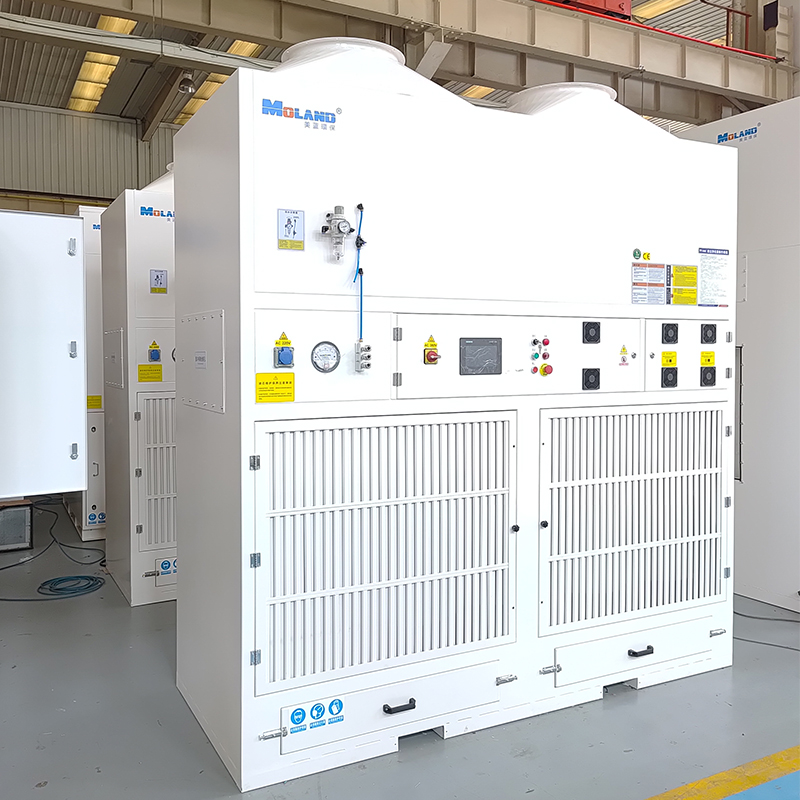

MLWF2000DM-20T-Ultra

Grinding Dust Collector

The MLWF2000DM-20T-Ultra Grinding Dust Collector is engineered for heavy-duty dust management in large workpiece grinding operations. It features an Yinmengda variable frequency motor, Siemens PLC & touchscreen, and Siemens frequency converter for precise, intelligent control. Equipped with an automatic pulse cleaning system, it ensures continuous, efficient dust capture and purification, maintaining a clean and safe workshop environment.

  • Motor Power:5.5kw*2
  • Air Volume:10000~20000m³/h
  • Flame-retardant PTFE coated polyester fiber filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for heavy-duty workpiece grinding and polishing.
Get In Touch
  • Free combination on demand to meet various working conditions

Grinding Dust Collection Cabinet

For heavy-duty large workpiece grinding, the MLWF2000DM-20T-Ultra delivers exceptional dust control. Equipped with an Innomotics variable frequency motor, Siemens PLC, touchscreen, and frequency converter, it ensures stable, energy-efficient operation. The fully automatic pulse cleaning system minimizes maintenance, while the telescopic room creates a semi-sealed environment for efficient dust capture and purification.

Tech Specs

Product model MLWF2000DM-20T-Ultra
Power 5.5kw*2
Working Voltage 380v/50Hz 3P
Air volume 10000~20000m³/h
Filter accuracy 0.3μm
Filter material Flame-retardant PTFE coated polyester fiber
Cleaning Mode Automatic pulse jet cleaning
Filter area 100m²
Noise 75±3dBA
Dimensions 2300*1250*2400mm
Weight 750±20Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Grinding Dust Collection Cabinet with Telescopic Room

The MLWF2000DM-20T-Ultra Grinding Dust Collection Cabinet, paired with a telescopic room, features branded motors and electrical components plus automatic pulse cleaning for efficient dust control during large workpiece grinding. Optional explosion-proof devices are available for specific material applications.

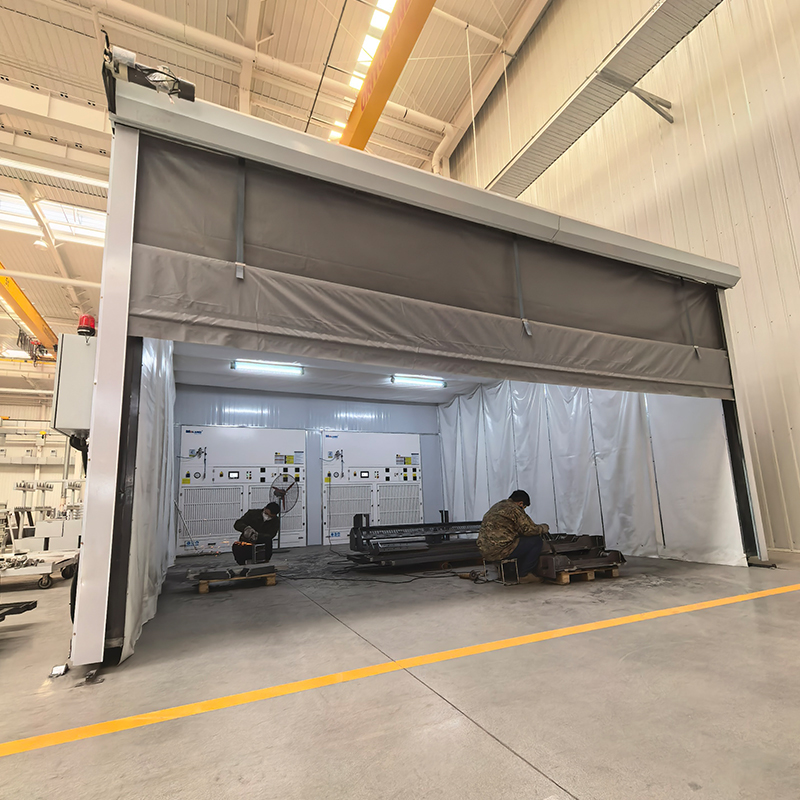

  • Telescopic Room


    1. The telescopic grinding room can be customized according to the size of the workpiece. The room ventilation volume can be adjusted by raising and lowering the rolling shutter door to form a semi-enclosed environmentally friendly dust removal room. When not in use, the room can be retracted and does not take up space.

  • PLC Intelligent Control System


    1. Equipped with the intelligent control system independently developed by Moland, all function control and feedback information are displayed on the PLC screen.
    2. Important parameters are password-protected to prevent misoperation.

  • Explosion-proof Configuration


    1. Explosion-proof fan, explosion-proof solenoid valves, anti-static filters, explosion-proof electric control box.
    2. Explosion-proof design ensures safe production for special material workpiecces, like aluminum.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Automatic Pulse Jet Cleaning


    1. Flame-retardant polyester filter cartridges achieve an exceptional 99.9% purification efficiency for dust particles as small as 0.3 microns, ensuring clean air in your workshop. Smooth surface makes dust removal incredibly easy, reducing maintenance time and effort. With a long lifespan of approximately 4000 hours.

  • Dual Motors and Dual Controls


    1. Our system features dual motors with independent control, allowing users to activate one or both based on actual needs. This flexible design optimizes energy use, significantly reducing power consumption and operational costs while maintaining efficient performance.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
