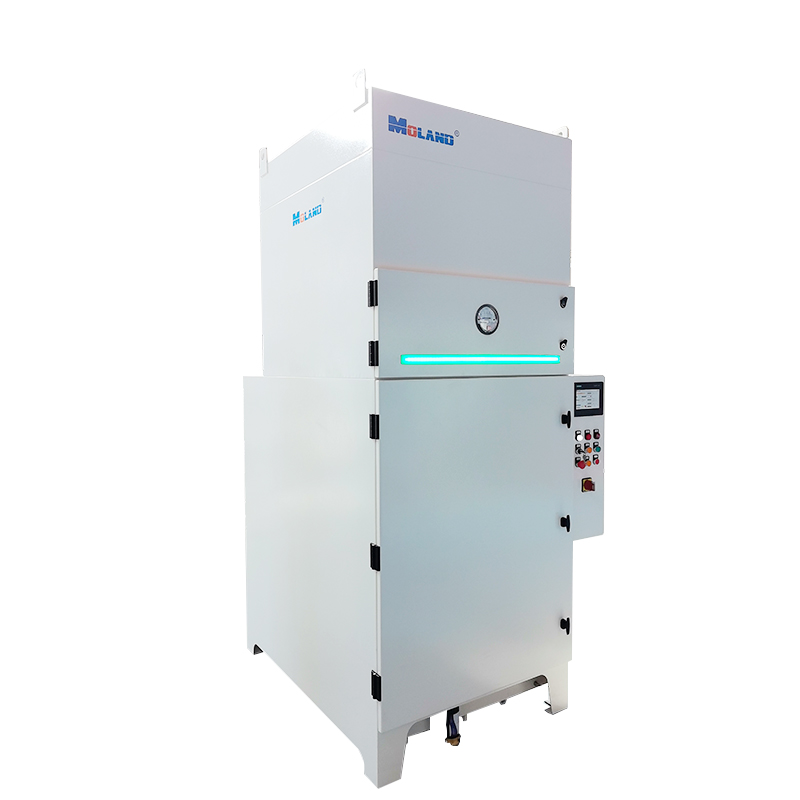

MLWF200-YW

Oil Mist Purifier

The MLWF Series Oil Mist Purifiers are engineered for industrial oil mist and dust control, such as machining. Featuring oil filter cartridges, medium/high-efficiency and activated carbon filters, they deliver exceptional filtration performance, effectively capturing and removing dust and contaminants for a cleaner working environment.

  • Motor Power:3kw
  • Air Volume:2000m³/h
  • Air Pressure: 2800Pa
  • F9 cartridge filters, medium/HEPA/activated carbon filters
  • Manual cleaning
  • Suitable for industrial oil mist and dust control
Get In Touch
  • Free combination on demand to meet various working conditions

Oil Mist Purifier

Struggling with oil mist and dust in your machining and other industrial processing operations? The MLWF Series Oil Mist Purifiers are the answer. Featuring a multi-stage filtration system with oil filter cartridges, primary, medium, and high-efficiency filters, it efficiently captures and filters dust and contaminants, improving your working environment.

Tech Specs

Product model MLWF200-YW
Power 3kw
Working Voltage 380v/50Hz 3P
Air volume 2000m³/h
Air pressure 2800Pa
Filter accuracy 0.3μm
Filter material F9 oil paper filter, G2 pre-filter, F5 medium filter, H13 filter
Cleaning Mode Manual cleaning
Filter area 26m²
Noise 70dBA
Dimensions 1260*1470*2510mm
Weight 600Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Oil Mist Collector

The MLWF Series Oil Mist Purifiers: Your solution for industrial oil mist in industrial processing, such as machining. A multi-stage filtration system with oil filter cartridges, primary, medium, and high-efficiency filters ensures powerful and effective capture and filtration of dust and contaminants.

  • Intelligent Control System


    1. Equipped with Moland independently developed intelligent control system, all function control and feedback information are displayed on the screen.
    2. Important parameters are protected to prevent misoperation.
    3. Optional Siemens system.

  • First Stage Oil Separator


    1. Gas enters the separator, where a rotating device flings large oil droplets onto a metal baffle. The oil coalesces and drains into a collection tank, while the gas moves to the next filtration stage.

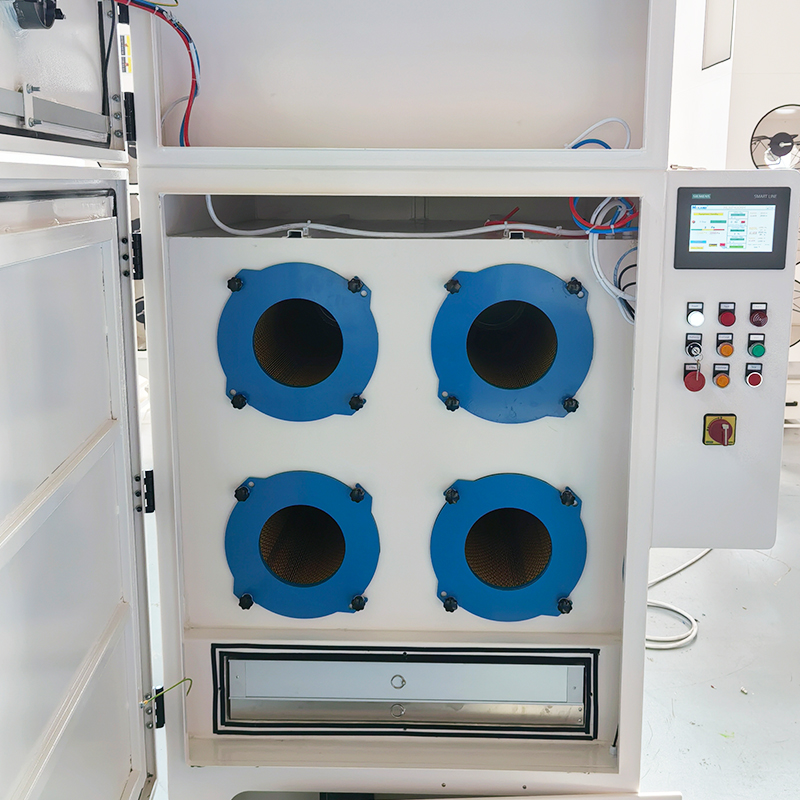

  • Multi-stage Filtration


    1. Four-stage filtration: primary filter, oil paper filter cartridges, medium filter, and HEPA filter
    2. Vertical arrangement.
    3. Optional active carbon filter for odor removing.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
