MLWF200-BGM

Wall-mounted Fume Extractor

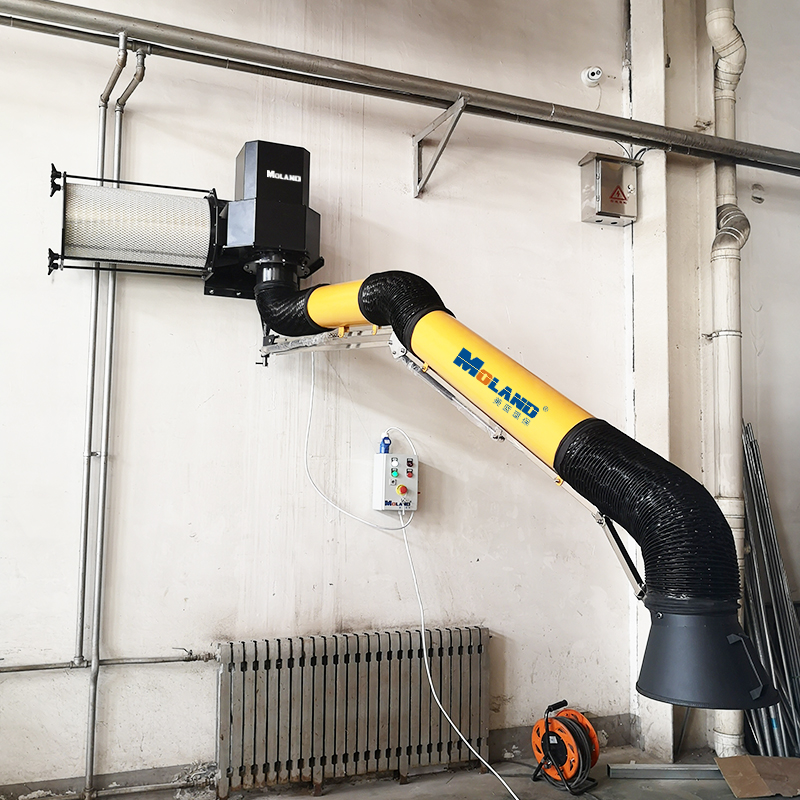

This MLWF200-BGM wall mounted fume extractor is a high-performing fume extraction & filtration kit for everyday applications. Featuring an externally articulated 3m flexible extraction arm that allows for simple repositioning and maintenance and caputring smoke and dust at generating source.

  • Motor Power: 1.5kw
  • Air Volume:2000~2500m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Extraction Arm: 200mm * 3m
  • Easy-to-install, easy-to-operate.
  • Capture-at-source for cleaner air.
Get In Touch
  • Free combination on demand to meet various working conditions

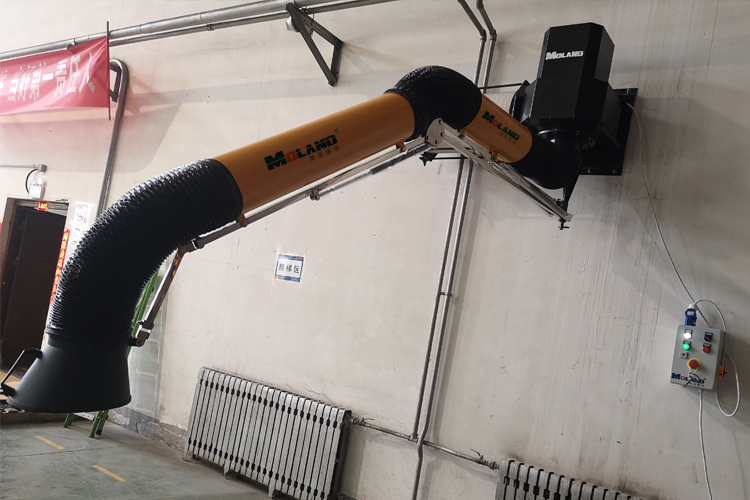

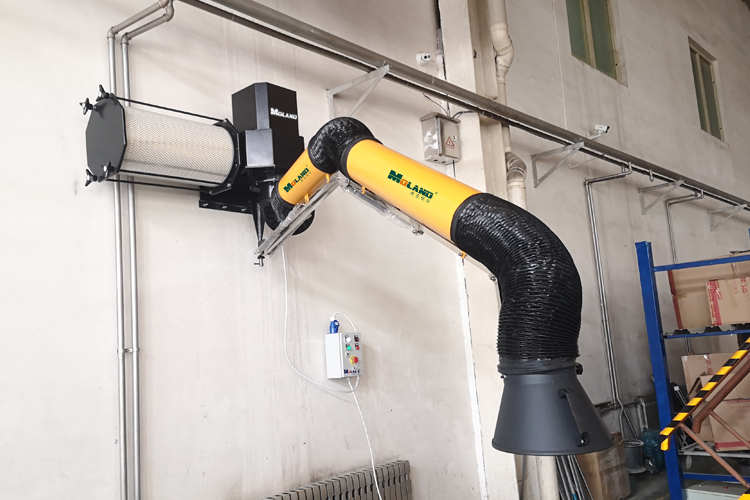

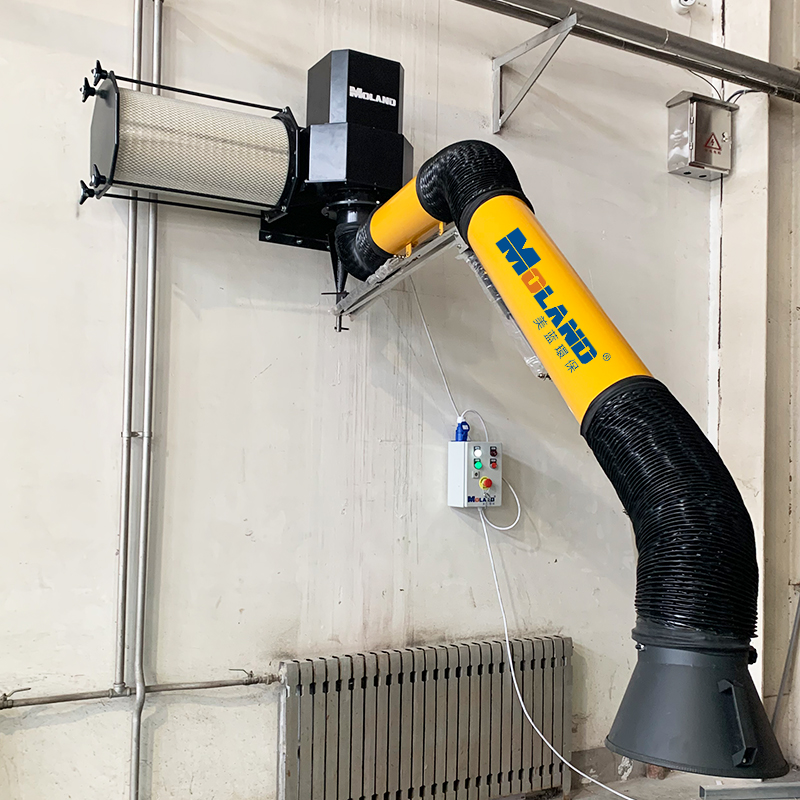

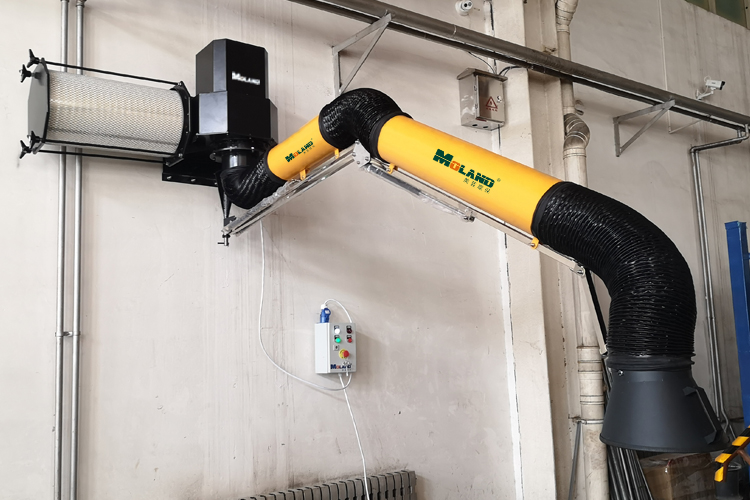

Wall Mounted Fume Extractor

This MLWF200-BGM Wall Mounted Fume Extractor provides the ultimate in flexibility for removing fumes and dust from your work environment. It is equipped with a high-efficiency fan to increase CFM at the extraction point. The large filtering area AHLSTROM filter makes the filteration effect better.

Tech Specs

Product model MLWF200-BGM
Power 1.5kw
Working Voltage 380v/50Hz 3P
Air volume 2000~2500m³/h
Filter accuracy 0.3μm
Filter material Nano flame-retardant fiber
Cleaning Mode Manual
Filter area 23m²
Noise 65dBA
Dimensions 1160*604*690mm
Weight 150Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Wall-mounted Welding Fume Extractor

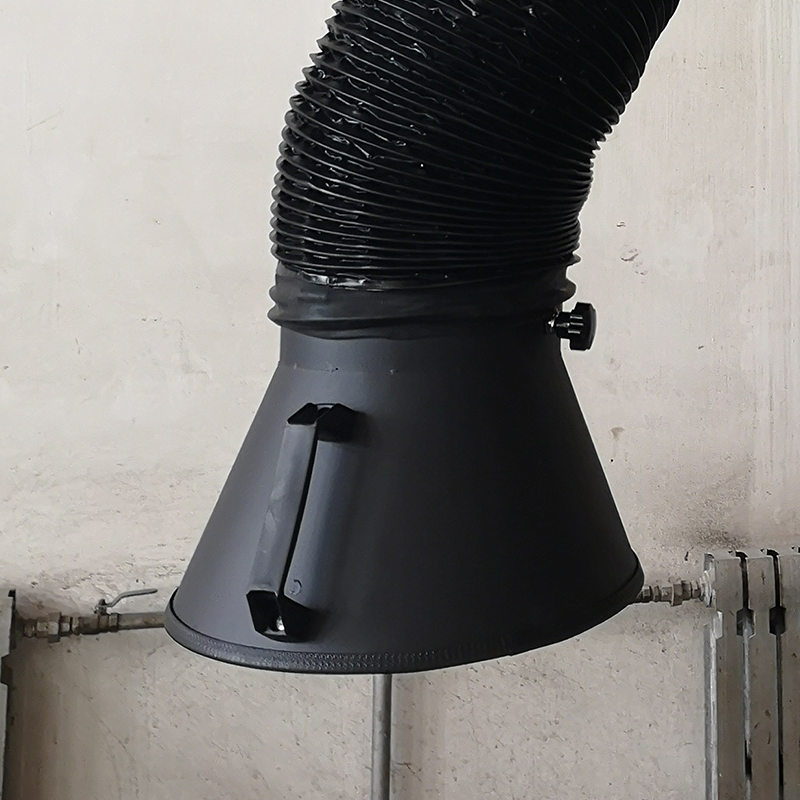

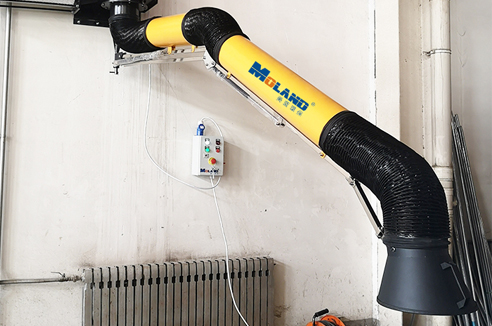

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. Arm size is 200mm*3m, or customized.

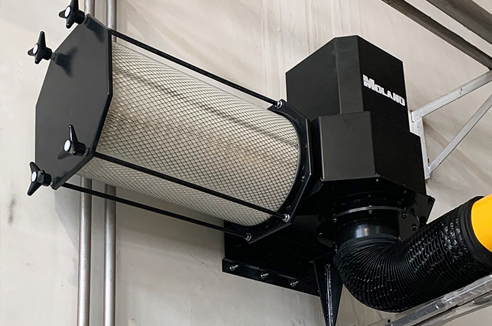

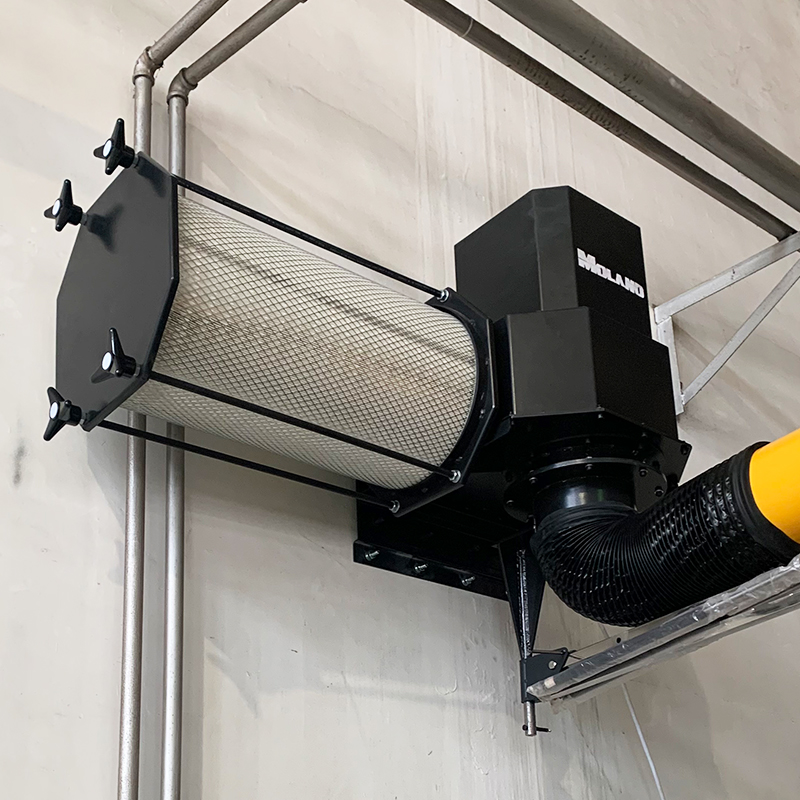

  • Nano Filter


    1. Imported Ahlstrom brand flame-retardant nano fiber filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9% and large filtering area, it can easily achieve standard emission of purified air.

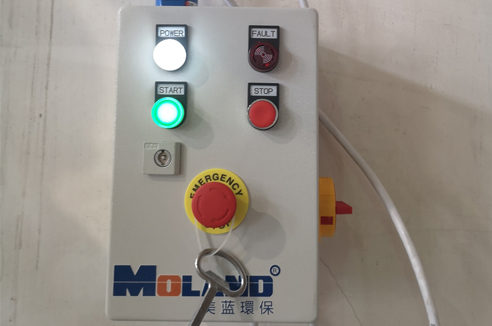

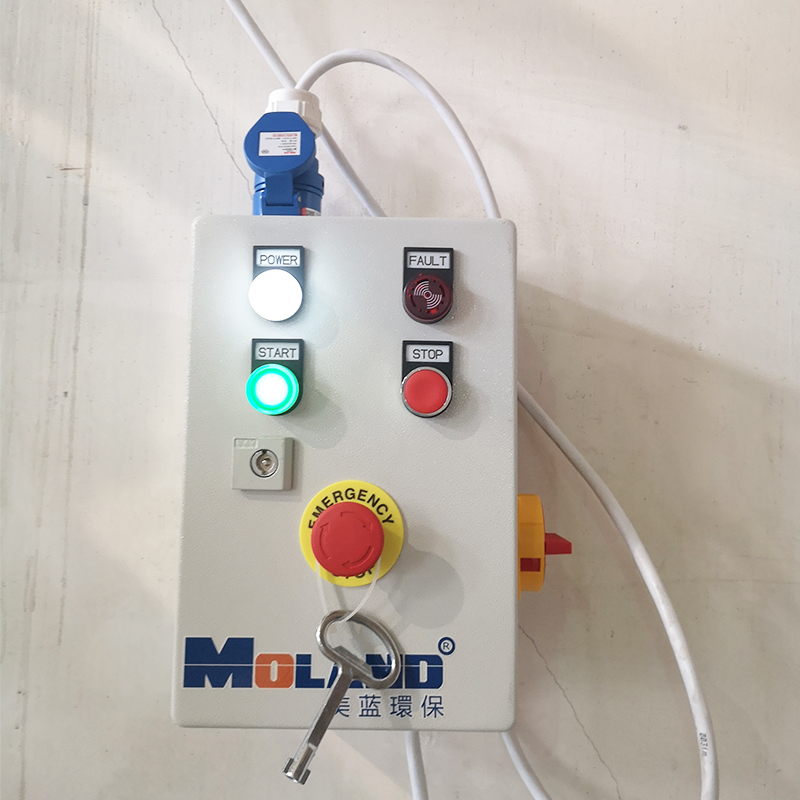

  • Independent Electric Control


    1. Independent electric control box, easy to install and operate.
    2. Button operation, simple and easy to use.
    3. Emergency stop button + alarm function ensures your safe production.
