MLWF110A/150A

Mobile Fume Extractor

MLWF110A/150A Portable Welding Fume Extractor: Three-stage filtration (spark arrestor, 99.9% filtration Nano filter, HEPA filter). The HEPA filter can be replaced to activated carbon filter for deodorization. Fully automatic pulse jet cleaning + flexible arm, flexibly purifying welding fumes.

  • Motor Power:0.75/1.2kw
  • Air Volume:1100/1500m³/h
  • 3-stage Filteration: Spark arrestor, Nano filter, HEPA filter/Active carbon filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.
Get In Touch
  • Free combination on demand to meet various working conditions

Portable Welding Fume Extractor

The MLWF110A/150A mobile fume extractor is tailor-made for welders' mobile workstations: its large wheels glide smoothly over workshop obstacles, and the flexible suction arm acts like a "long-armed helper," precisely capturing sparks and fumes as soon as the welding torch is lit, locking down pollution at the source. Three-stage filtration provides layered purification, eliminating smoke and odors, and filtering out 99.9% of even 0.3um fine particles, ensuring clean air no matter how long you weld!

Tech Specs

Product model MLWF110A MLWF150A
Power 750w 1.2kw
Working Voltage 220v/50Hz 1P 380v/50Hz 3P
Air volume 1100m³/h 1500m³/h
Filter accuracy 0.3μm 0.3μm
Filter material Spark Arrestor; Flame-retardant Nano filter; HEPA Filter (Optional Active Carbon Filter)
Cleaning Mode Automatic pulse jet cleaning
Filter area 23m² 23m²
Noise 75±3dBA 75±3dBA
Dimensions 600*1130*1010mm 600*1130*1010mm
Weight 90Kg 95Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

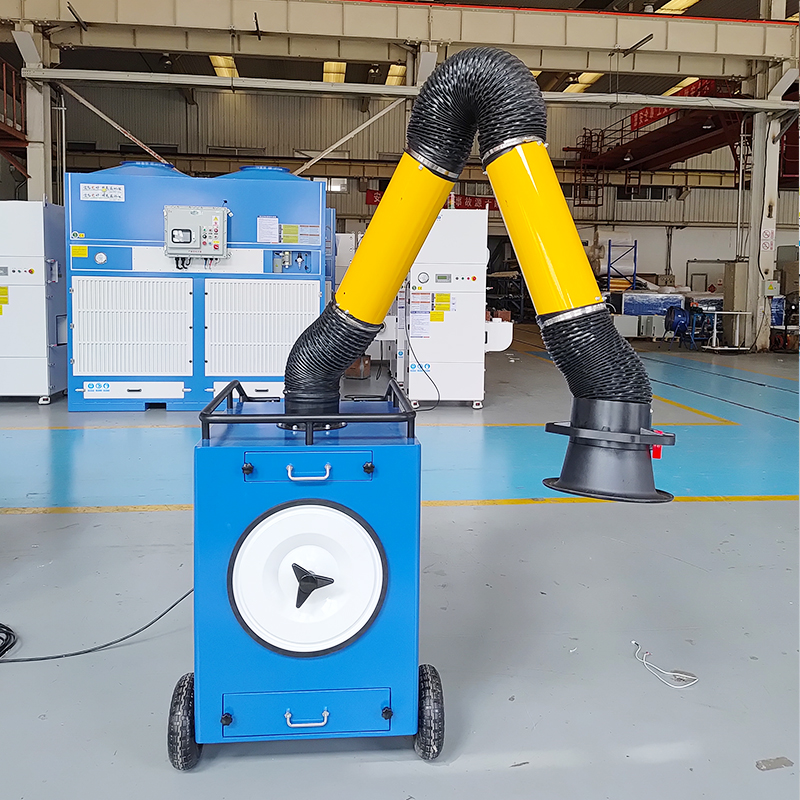

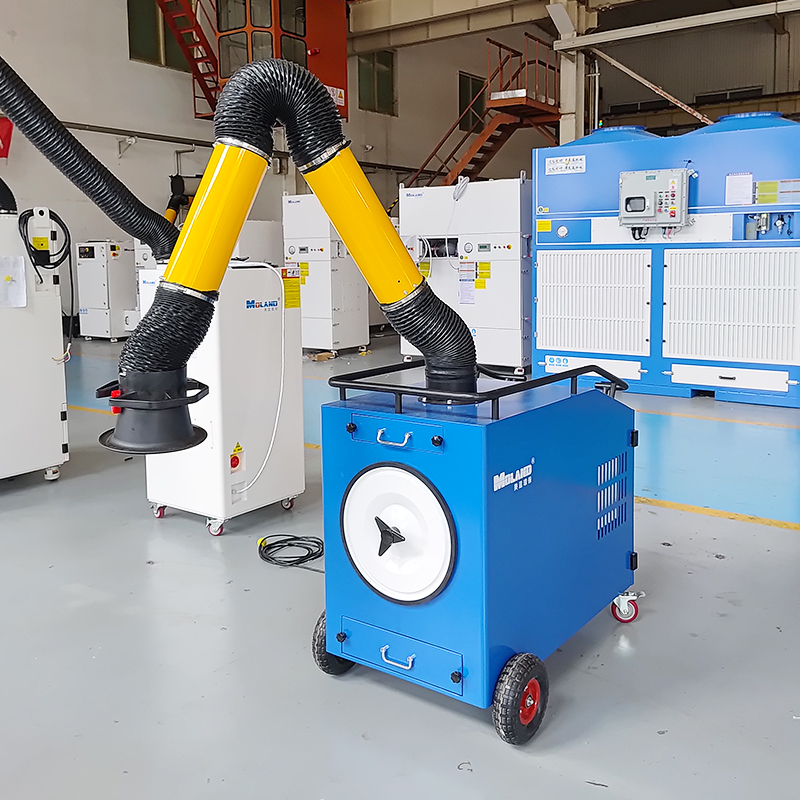

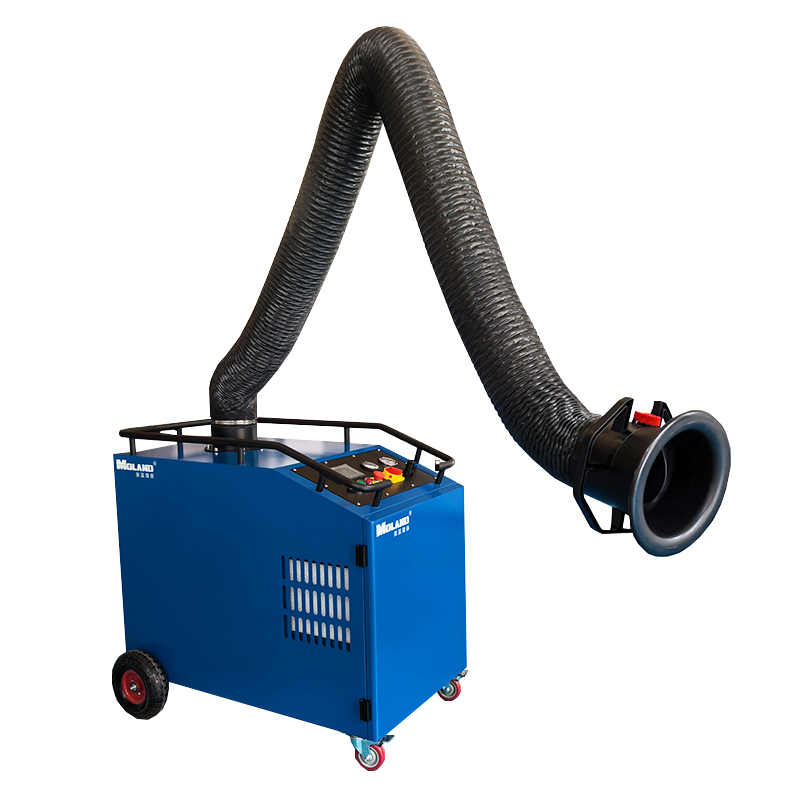

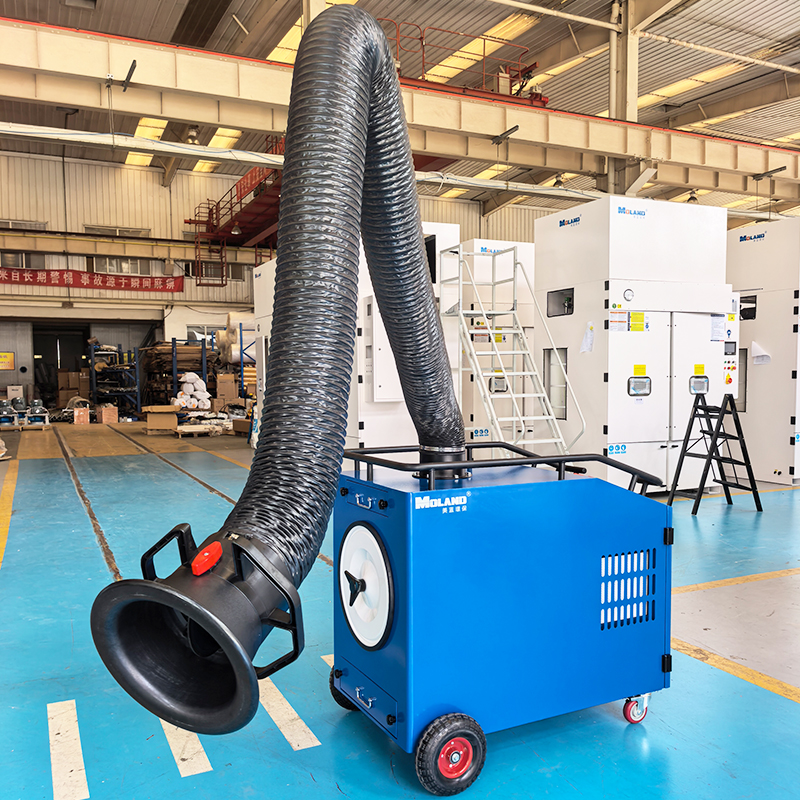

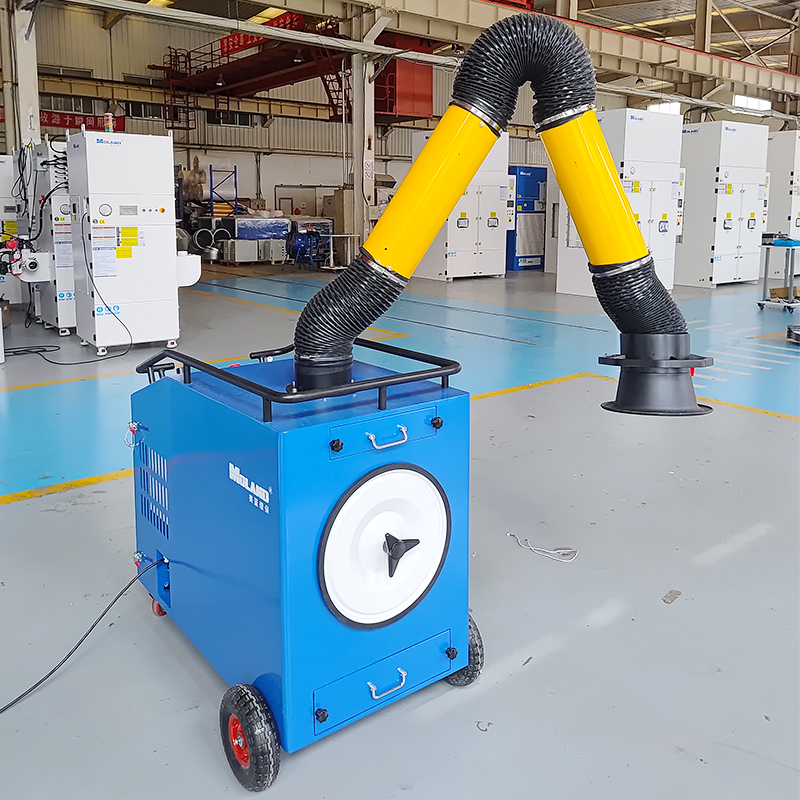

Movable Welding Fume Extractor with Flexible Suction Arm

The MLWF110A/150A mobile fume extractor is suitable for mobile welding workstations, featuring large wheels for easy maneuverability over obstacles, a flexible arm for source capture of fumes, and a three-stage filtration system to remove smoke, dust, and odors. First stage: Spark arrestor, easily capture sparks and large particles. Second stage: flame retardant nano filter, with a filtration efficiency of 99.9% for 0.3μm particles. Third stage: HEPA filter for fine particle purification, or optional active carbon filter for odor purification.

  • Intelligent Control System


    1. Equipped with Moland independently developed intelligent control system, all function control and feedback information are displayed on the screen.
    2. Button operation, simple and easy to use.
    3. Emergency stop button + alarm function ensures your safe production.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Flame-retardant Nano Filter


    1. Imported AHALSTROM brand flame-retardant Nano material filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.
    2. Horizontal arrangement.

  • Brand-name Fan


    1. Branded copper-core motor, sufficient power, and stable operation.

  • Large Capacity Dust Bin


    1. There is a large-capacity dust collection drawer at the bottom.
    2. Clean the dust drawer regularly.

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
