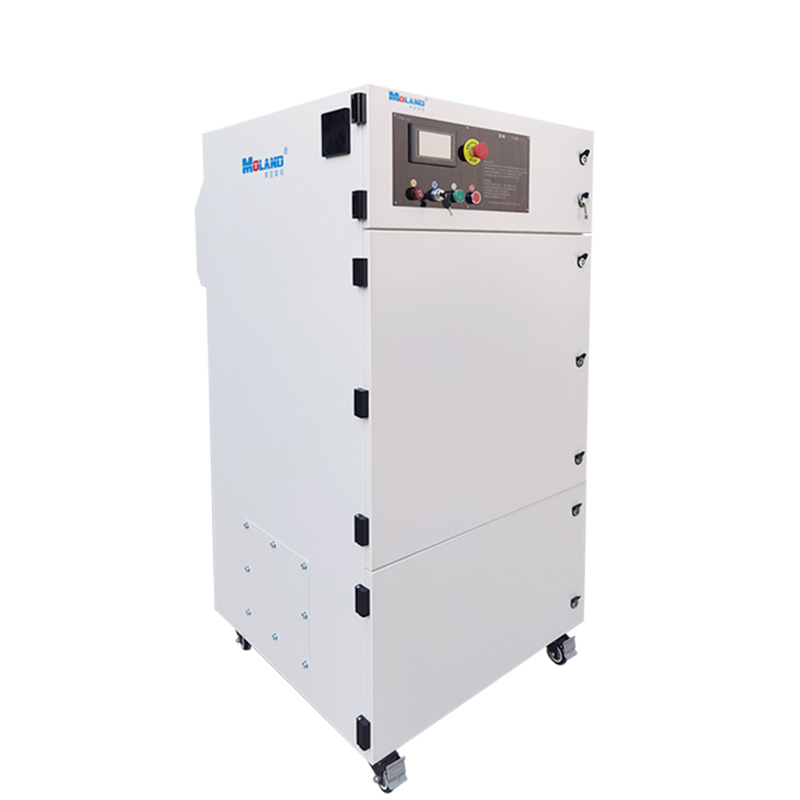

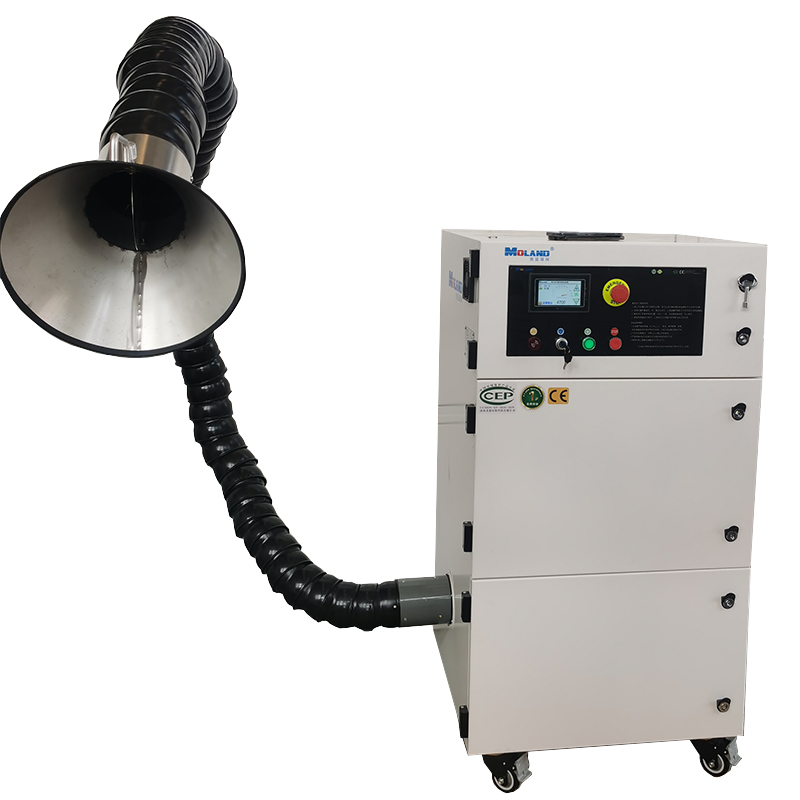

MLWF100/360

Mobile Fume Extractor

This dust smoke odor purifier is suitable for odor fume collection and purification, such as acrylic and rubber cutting, laser marking, laser engraving and laser welding, etc.

  • Motor Power：1.1/2.2kw
  • Air Volume:0~850/0~2600m³/h
  • Filtration Accuracy: 0.3μm, 99.9%
  • Filter: Multi-stage filter panels
  • For Laser cutting, laser engraving, laser marking, etc.
Get In Touch
  • Free combination on demand to meet various working conditions

High Efficiency Smoke Odor Purifier

Tech Specs

Product model MLWF100 MLWF360
Power 1.1kw 2.2kw
Working Voltage 220v/50Hz 1P 380v/50Hz 3P
Air volume 0-850m³/h 0-2600m³/h
Filter accuracy 0.3μm 0.3μm
Filter material Multi-stage filter panels
Air Intake 2*φ120mm 2*φ200mm
Noise 65dBA 75dBA
Dimensions 680*640*1290mm 800*800*1600mm
Weight 95Kg 135Kg

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

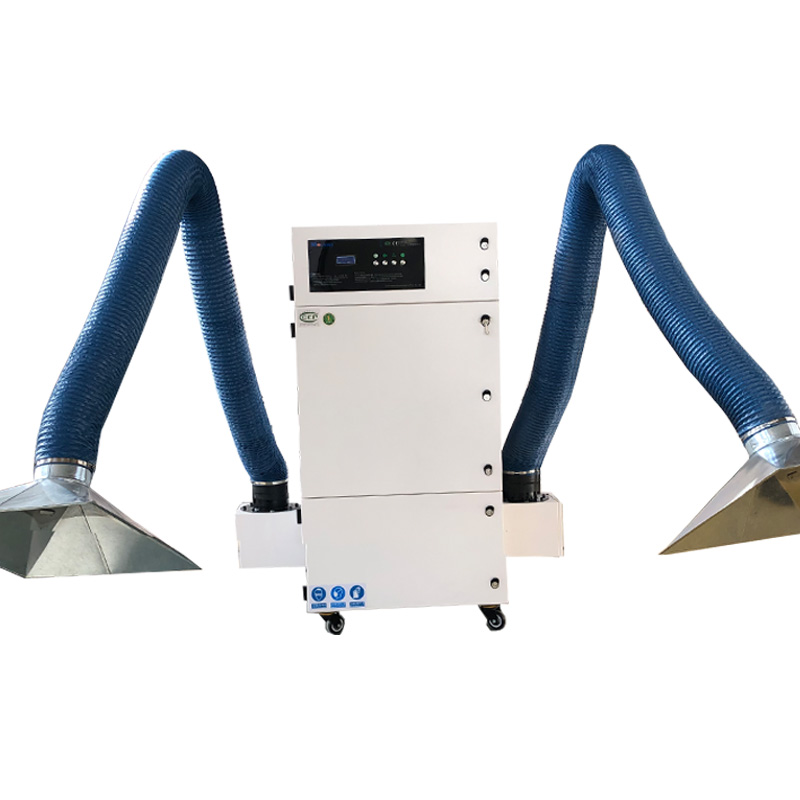

High Efficiency Smoke Purifier

It is suitable for odor and dust purification of multi-functional laser cutting machines, circuit board soldering, laser marking and engraving, laser cutting of acrylic, PVC, rubber and leather materials, etc.

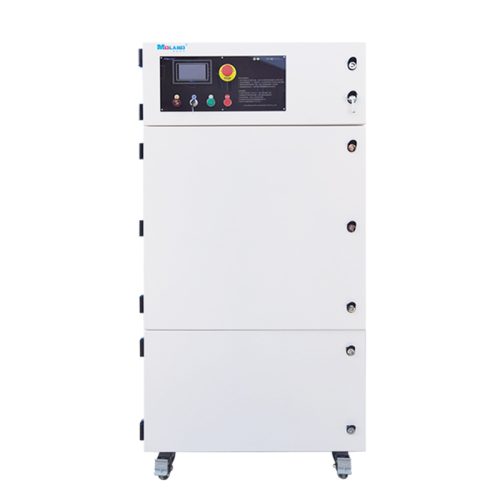

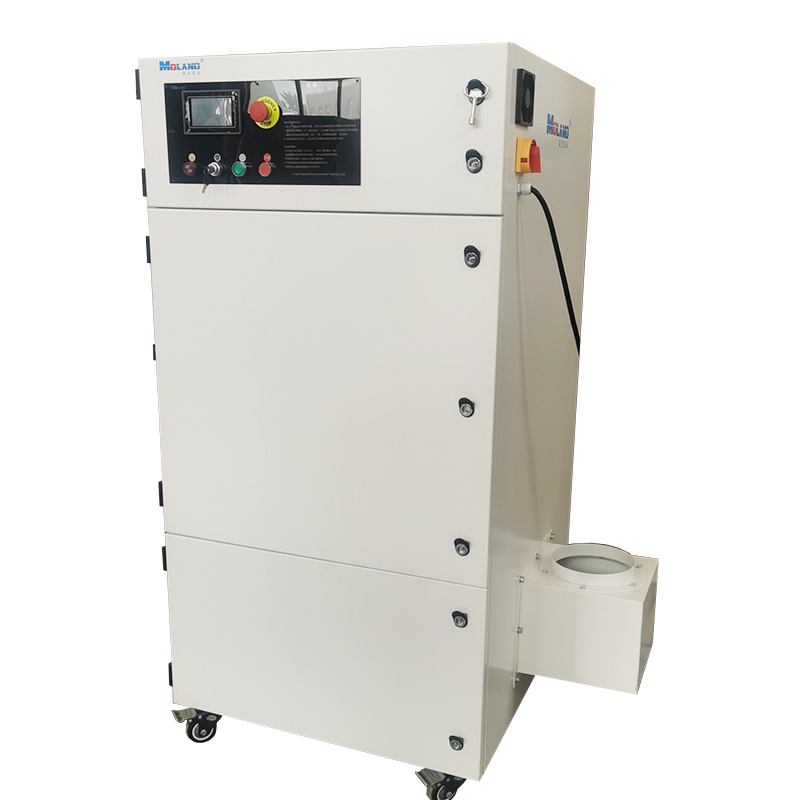

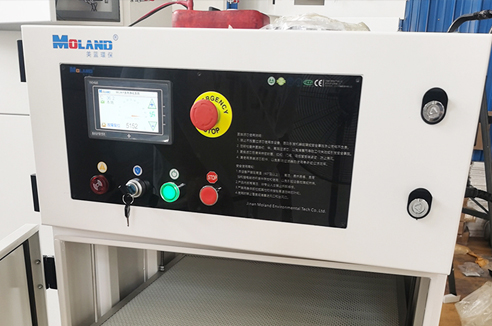

  • PLC intelligent Control


    1. PLC intelligent control panel, 10-speed adjustment, real-time display of speed, sound and light alarm when filter plate is clogged.

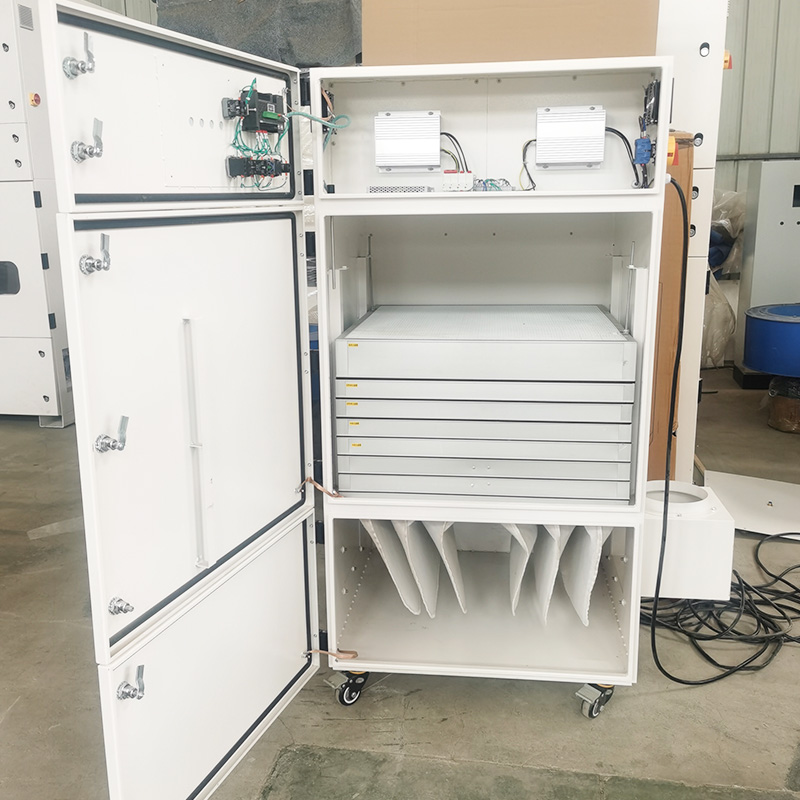

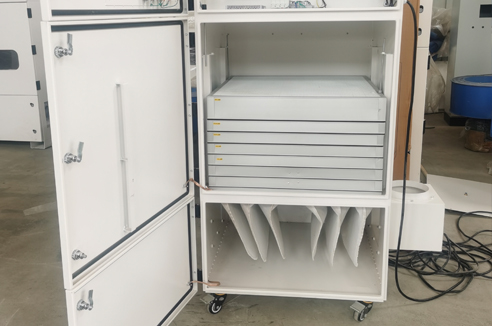

  • Multi-stage Filtration

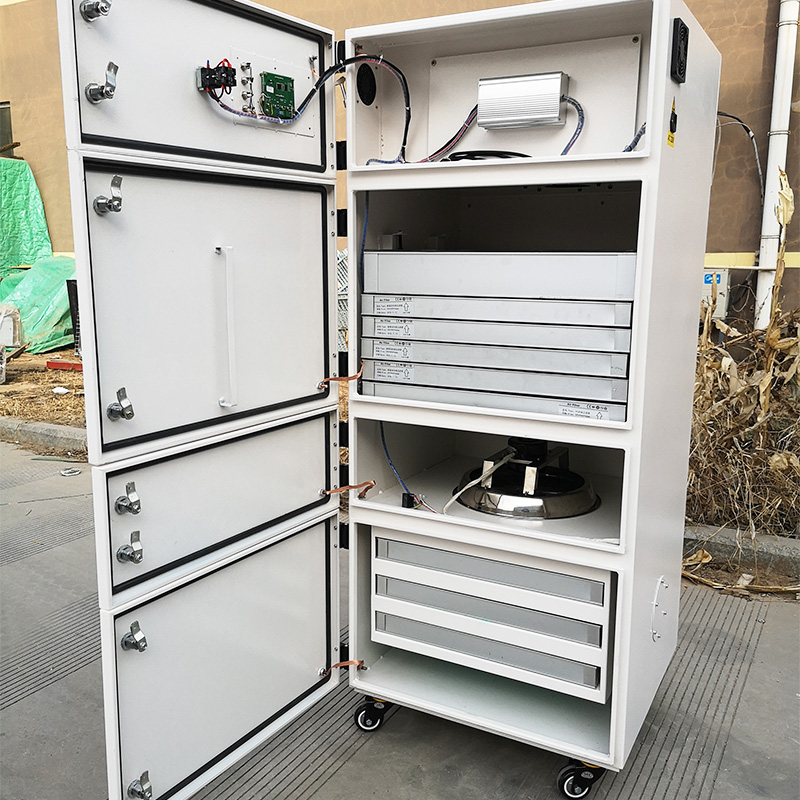

    1. The filter plate is installed in a drawer style, which is convenient and labor-saving.
    2. Multi-stage high-efficiency filtration ensures standard discharge.

  • Brushless DC Motor


    1. Brushless DC motor, energy saving, high speed, large air volume, large negative pressure, low noise and maintenance-free.

Applications

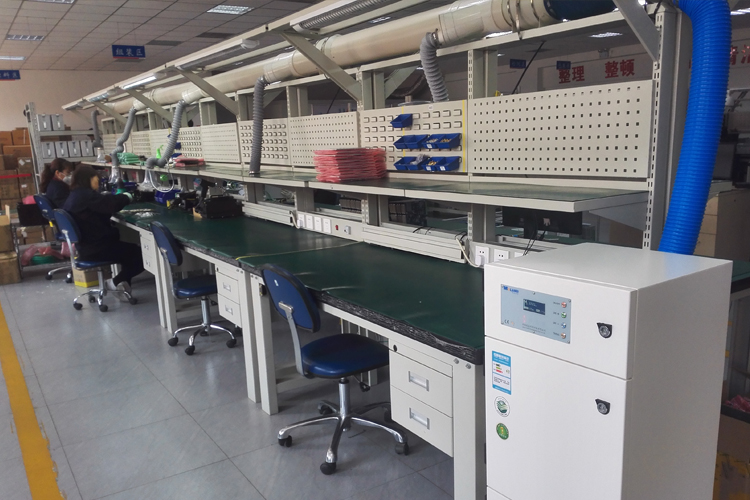

Soldering Smoke Purification

Laser Cutting Smoke Purification

Sulfur Smoke Purification

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
