MLWF200HD

Mobile Fume Extractor

The Mobile Fume Extractor features fuma castors for easy mobility and stability. It's designed for fume and dust purification from welding, grinding, and various processes, as well as for collecting rare metal particles and valuable materials.

  • Motor Power:3kw
  • Air Volume:2000m³/h
  • Pressure:3500Pa
  • Flame-retardant Nano filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Built-in air compressor
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.
  • Free combination on demand to meet various working conditions

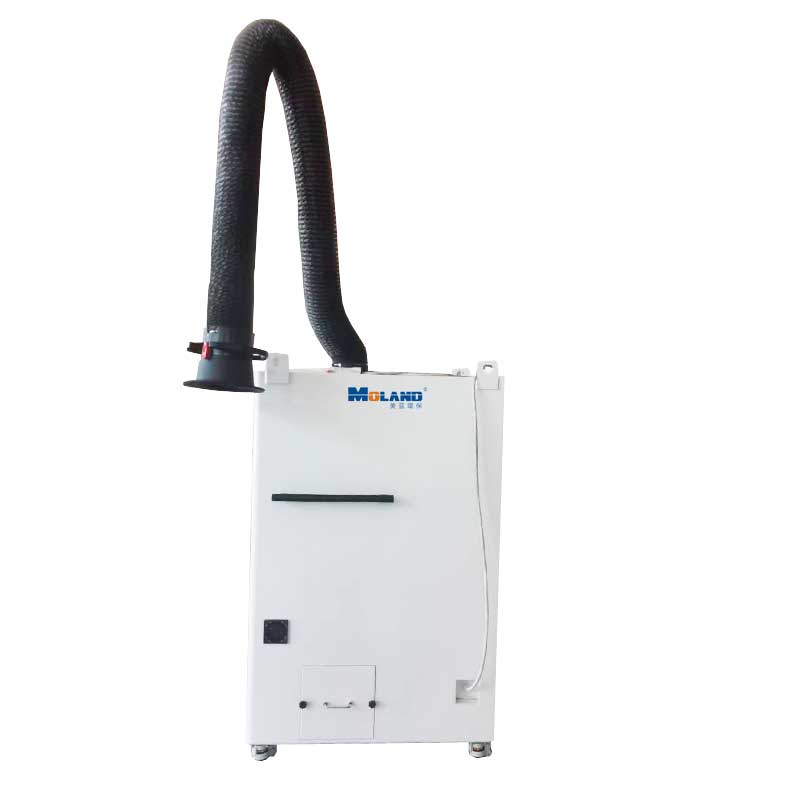

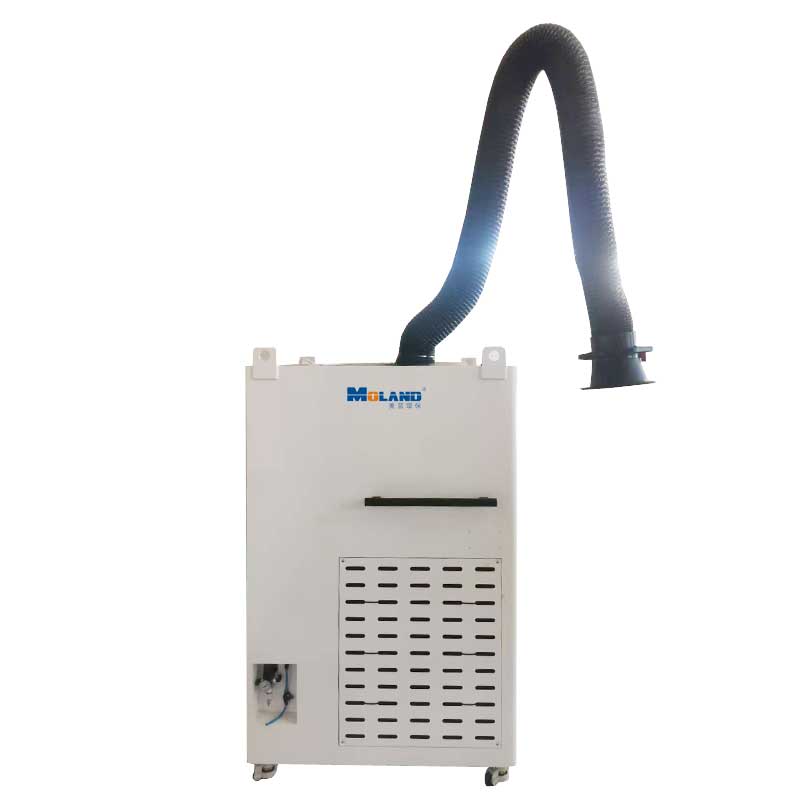

Mobile Single-Arm Fume Extractor

This mobile welding fume extractor is designed for industrial smoke in welding, it is lightweight and flexible, easy to operate. Using Nano Filter material cartridge filter, the filter efficiency up to 0.3um 99.99%. The extraction arm rotates 360 degrees and all adjustments are tooless.

Tech Specs

Product model MLWF200HD
Power 3kw
Working Voltage 380v/50Hz 3P
Air volume 2000m³/h
Pressure 3500Pa
Filter accuracy 0.3μm
Filter material Flame-retardant Nano filter
Cleaning Mode Automatic pulse jet cleaning
Filter area 23m²
Noise 75dBA
Dimensions 900*1020*1673mm
Weight 200Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

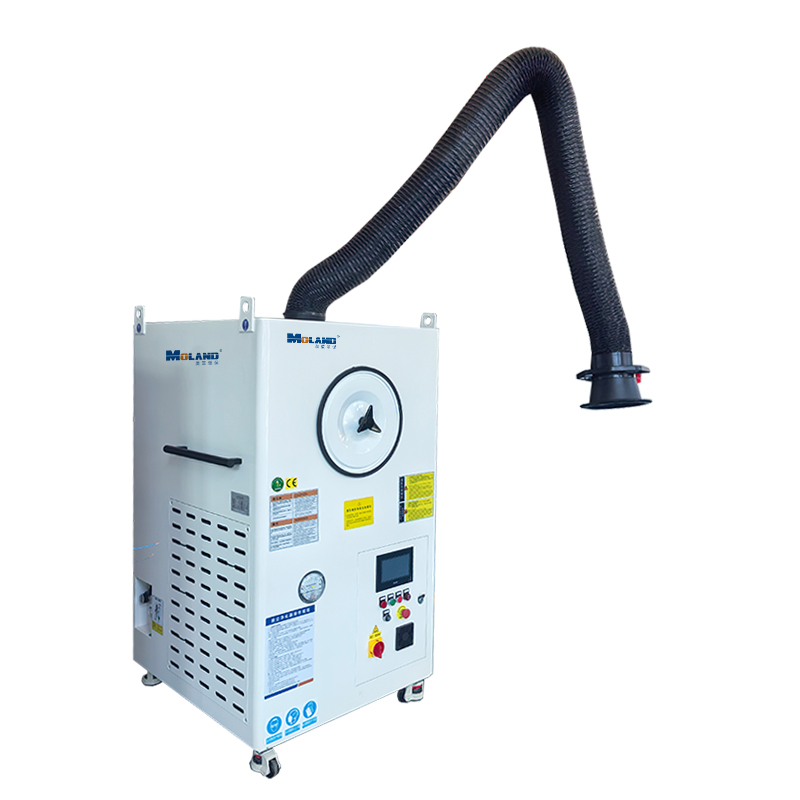

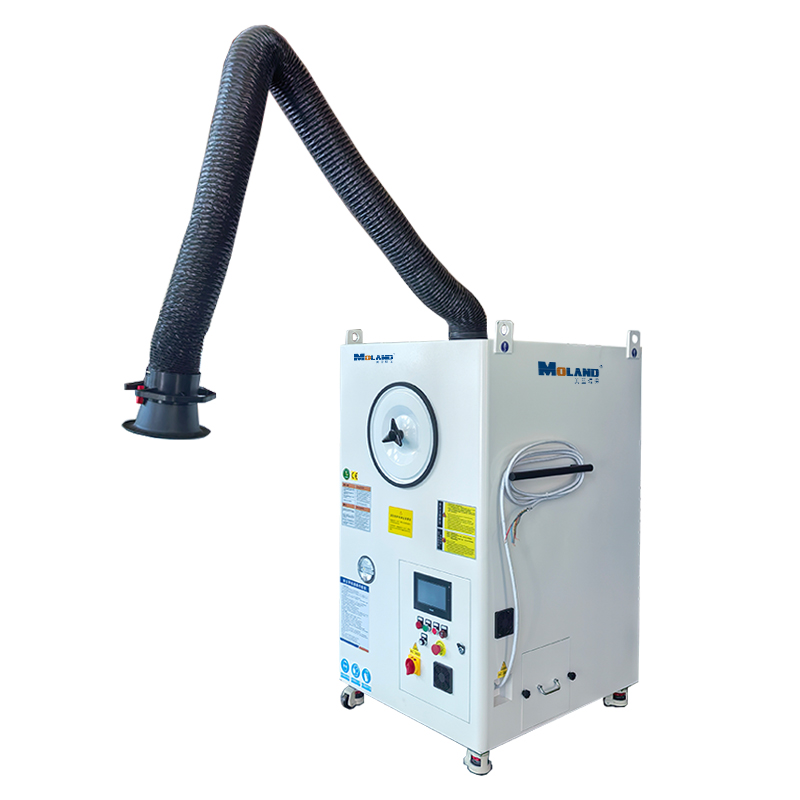

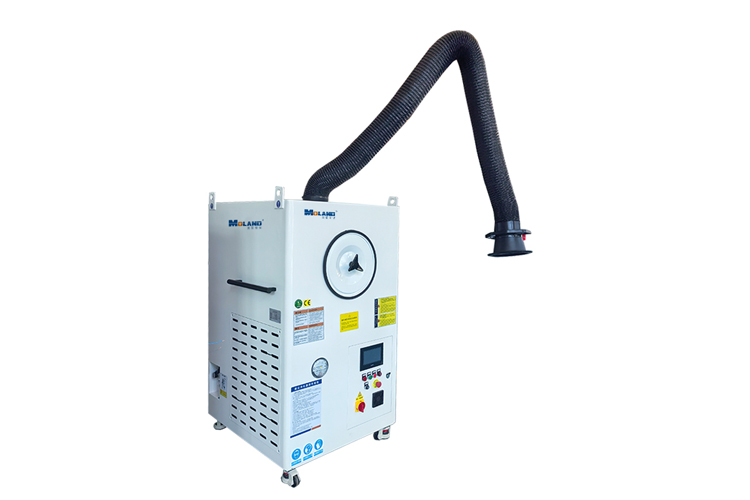

Mobile Fume Extractor with Single Extraction Arm

Mobile welding fume extractors go where you need them, suck up what you'd rather not breathe in, and are easily maneuverable for the best effect. The extraction arm is used of self supporting joints, flexible hose and smooth steel tubing make this fume extraction arm easy to work with and keep it near the source of the air contaminants. So contaminants including dust, fumes, smoke and more are removed right at their source.

  • Flame-retardant Nano Filter


    1. Imported AHLSTROM brand flame-retardant Nano filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.

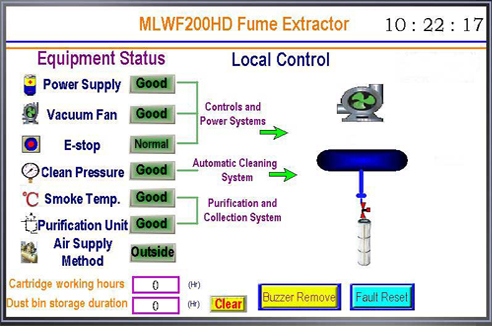

  • Intelligent Control System


    1. Power status monitoring, air pressure status monitoring, operating temperature monitoring, cartridge filter status monitoring.
    2. Optional Siemens screen.

  • Automatic Pulse Jet Cleaning


    1. Automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

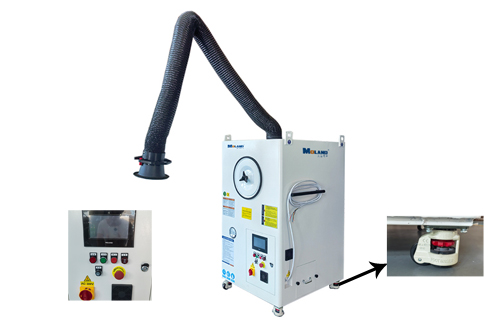

  • Movable and Simple


    1. The integrated structure has beautiful appearance and small footprint.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

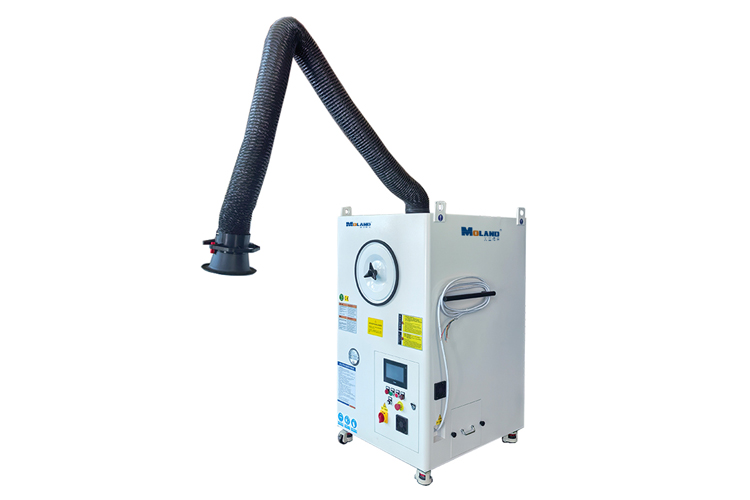

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. 200mm in diameter, 3m in length.
    3. Internal and external skeleton structures for your choose.

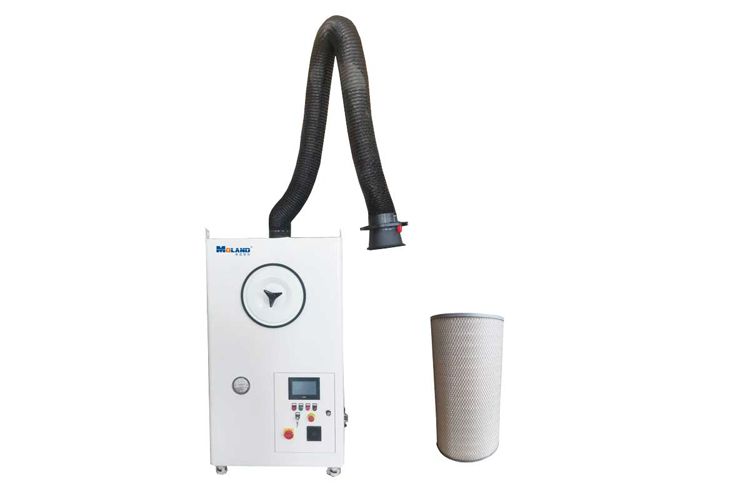

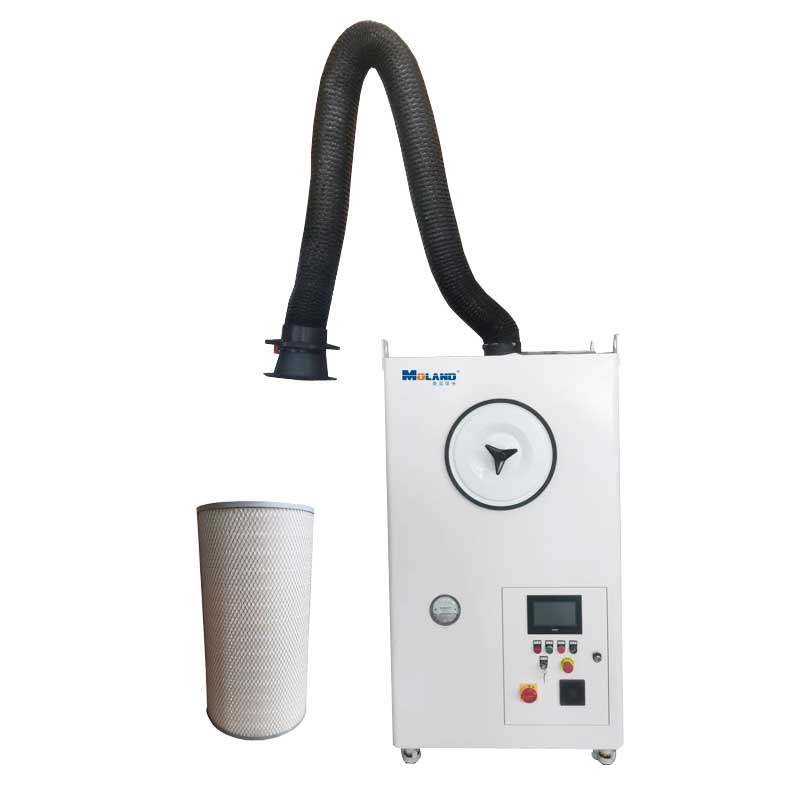

  • Filter Replacement


    1. The filter cartridge is installed in an horizontal manner, which occupies a small area and is easy and quick to install and remove.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
