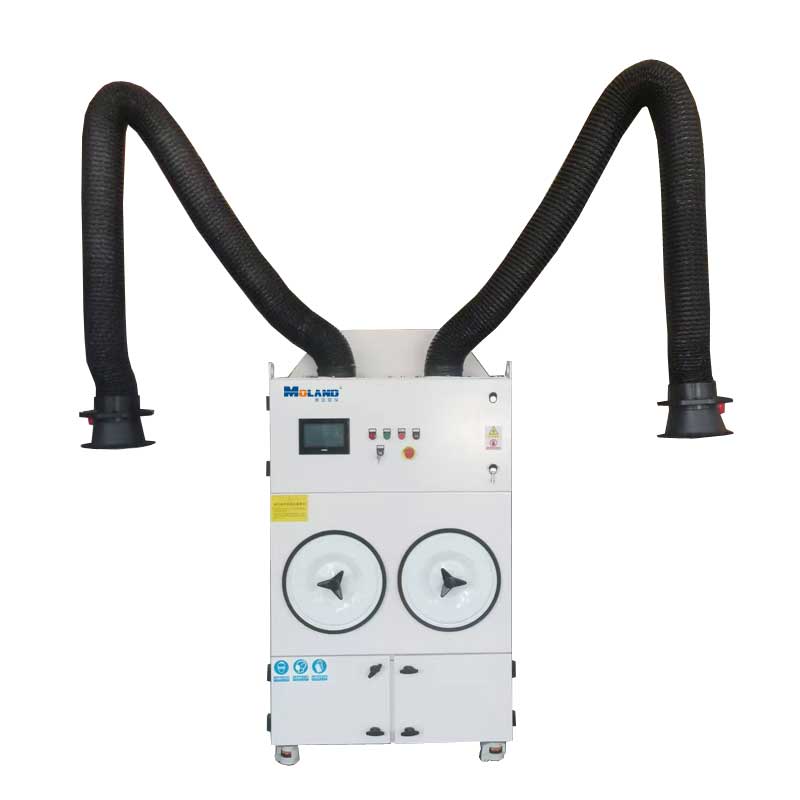

MLWF380HD

Mobile Fume Extractor

The Mobile Fume Extractor features two directional and two rotary polyurethane casters with brakes for easy mobility and stability. It's designed for fume and dust purification from welding, cutting, grinding, and various processes, as well as for collecting rare metal particles and valuable materials.

  • Motor Power:4kw
  • Air Volume:3800m³/h
  • Air Pressure:3800Pa
  • Flame-retardant Nano filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.
Get In Touch
  • Free combination on demand to meet various working conditions

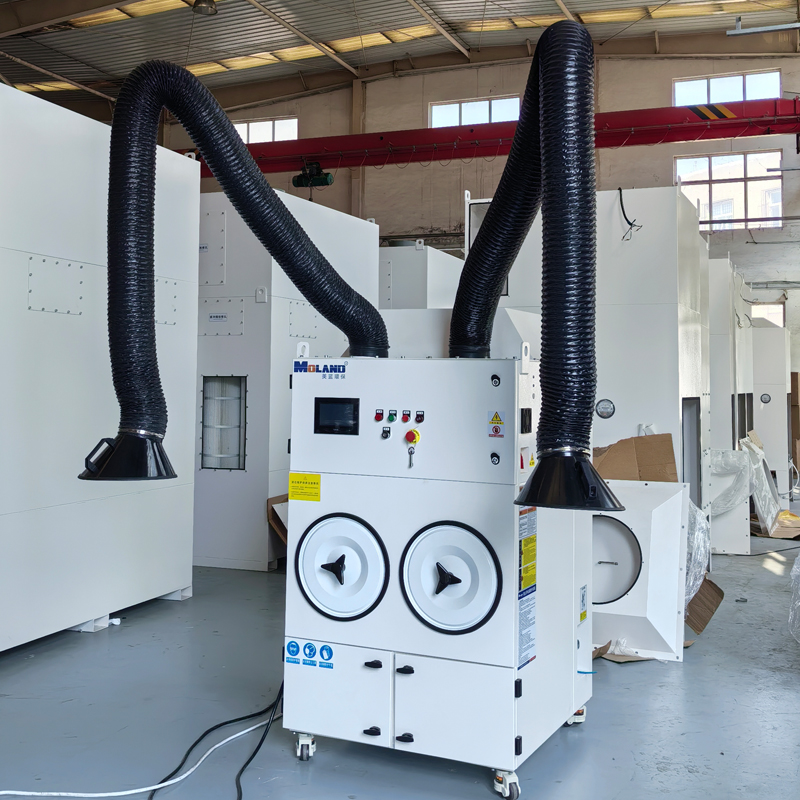

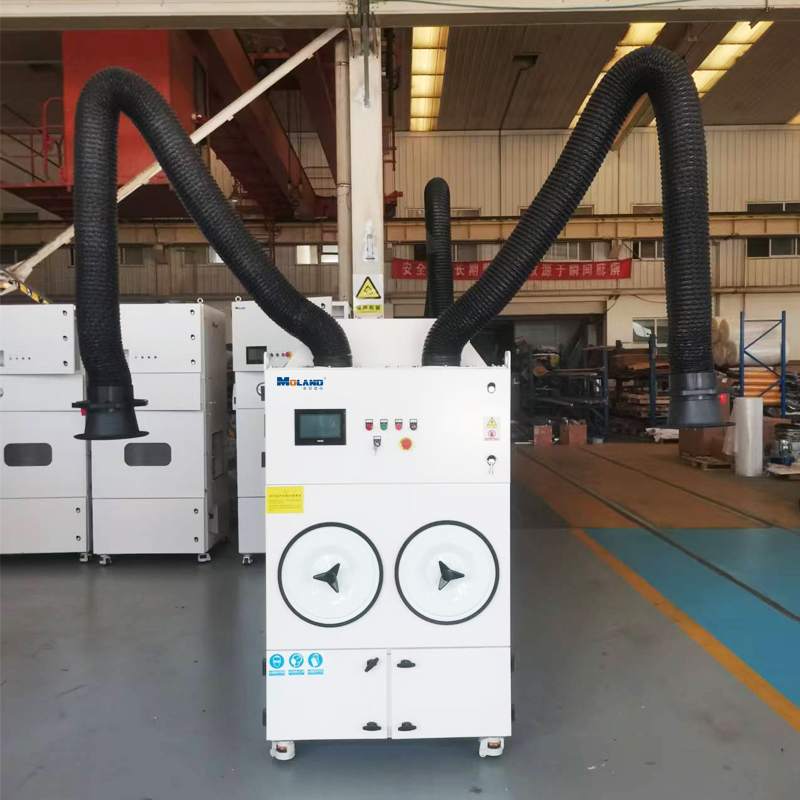

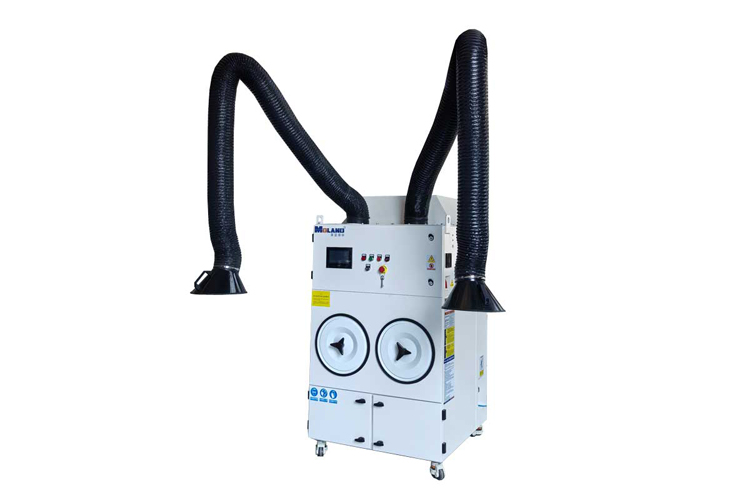

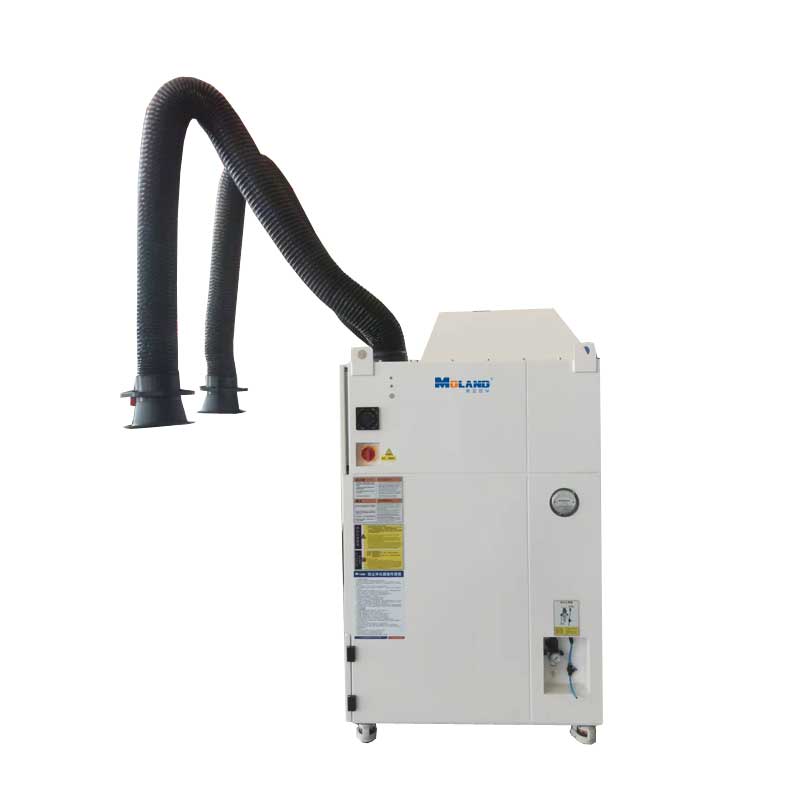

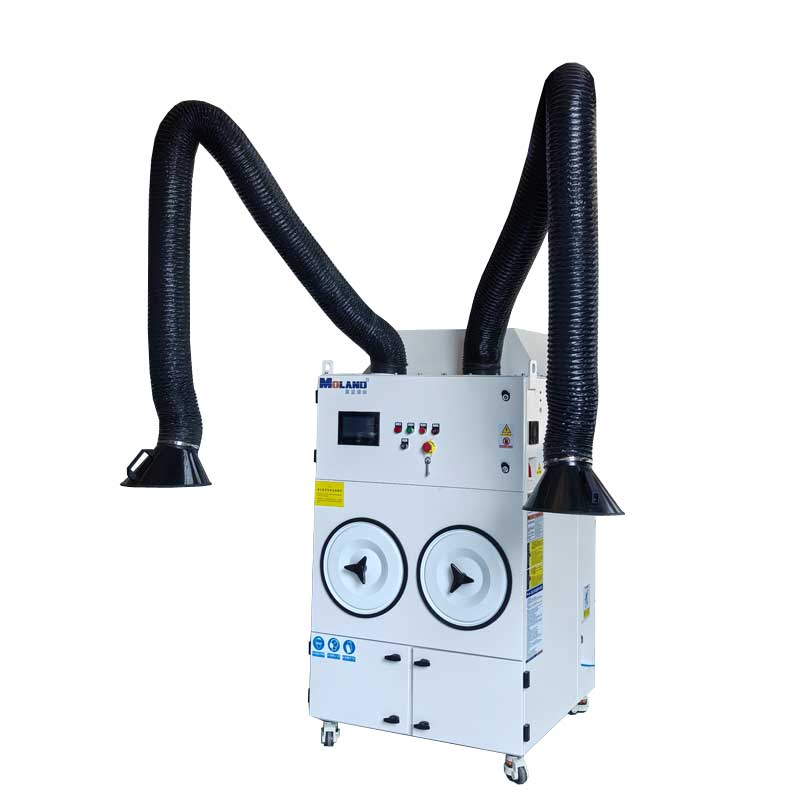

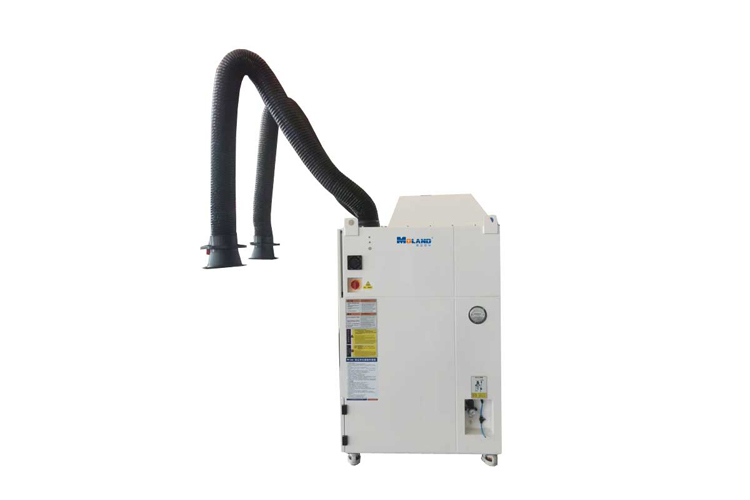

Mobile Fume Extractor with Dual Arm

This mobile fume extractor is designed for industrial dust and fume in welding, polishing and other metal processing procedures. It is light weight and flexible, easy to operate. Using flame retardant Nano material cartridge filter, the filter efficiency up to 0.3um 99.9%. The extraction arm rotates 360 degrees and all adjustments are tooless.

Tech Specs

Product model MLWF380HD
Power 4kw
Working Voltage 380v/50Hz 3P
Air volume 3800m³/h
Air pressure 3800Pa
Filter accuracy 0.3μm
Filter material Flame-retardant Nano filter
Cleaning Mode Automatic pulse jet cleaning
Filter area 23m²
Noise 75±3dBA
Dimensions 990*1070*1759mm
Weight 230Kg
OEM Acceptable
Certificate CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Product Advantages

  • Low Energy Consumption

    The intelligent control system ensures the use effect while reducing the consumption of electricity and compressed air as much as possible.

  • Large Air Volume

    We use famous brand fans, which are stable in operation and designed with low wind resistance to ensure the dust collection effect.

  • Easy To Maintain

    The design concept is people-oriented, with optimized structure, making daily cleaning and maintenance safe, convenient and fast.

  • No Blocking

    Using imported cartridge filters and advanced automatic dust cleaning system, the purification effect is remarkable.

  • Customizable

    It can be customized according to customer requirements, such as: parts, explosion-proof configuration, special power supply specifications, size, color, logo, etc.

Industrial Dust Collector

The MLWF series mobile welding fume extractors go where you need them, suck up what you'd rather not breathe in, and are easily maneuverable for the best effect. The extraction arm is used of self supporting joints, flexible hose and smooth steel tubing make this fume extraction arm easy to work with and keep it near the source of the air contaminants. So contaminants including dust, fumes, smoke and more are removed right at their source.

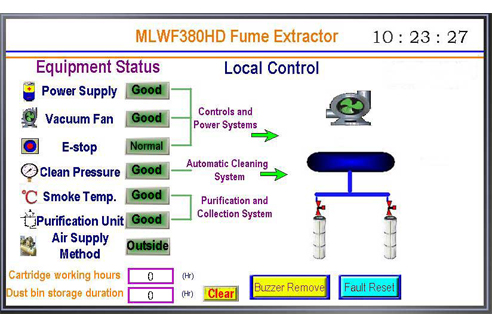

  • Intelligent Control System


    1. Equipped with Moland independently developed intelligent control system, all function control and feedback information are displayed on the screen.
    2. Important parameters are protected to prevent misoperation.
    3. Fault alarms prevent equipment damage, personal injury, and property loss.

  • Automatic Pulse Jet Cleaning

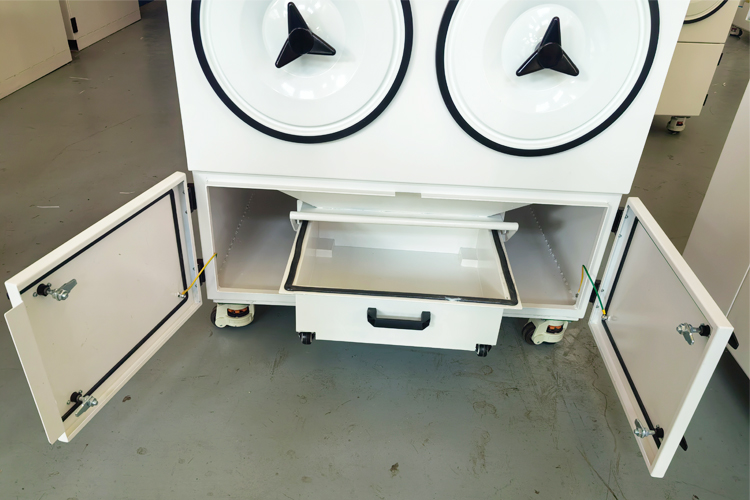

    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

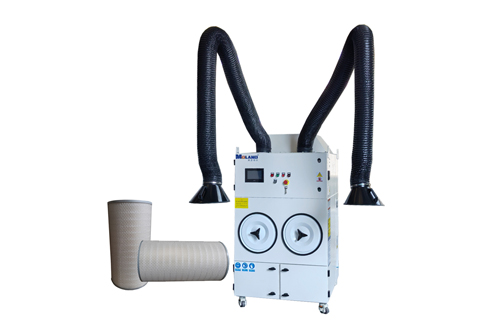

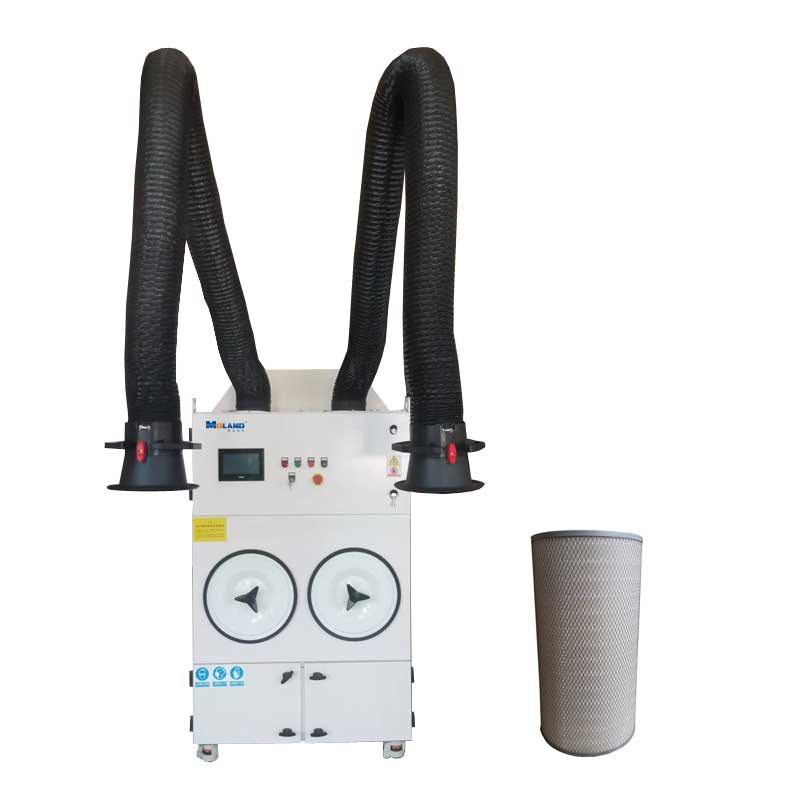

  • Flame-retardant Nano Filter


    1. Imported AHLSTROM brand flame-retardant Nano filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.
    2. Horizontal mounted.

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. 160mm in diameter, 2m or 3m in length.
    3. Internal and external skeleton structures for your choose.

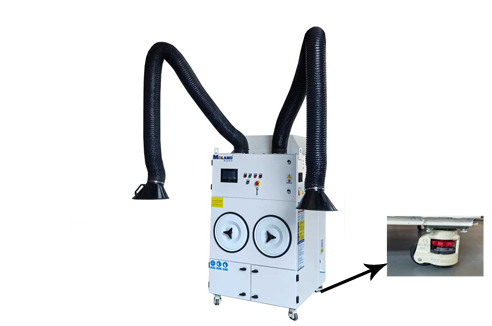

  • Movable and Simple


    1. The integrated structure has beautiful appearance and small footprint.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

  • Versatile


    1. The equipment can be used for collecting and purifying dry dust generated during production processes such as welding, cutting, grinding, and material cutting, offering broad applicability and excellent performance.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
