MLWF200-BGA

Extractor de humos mural

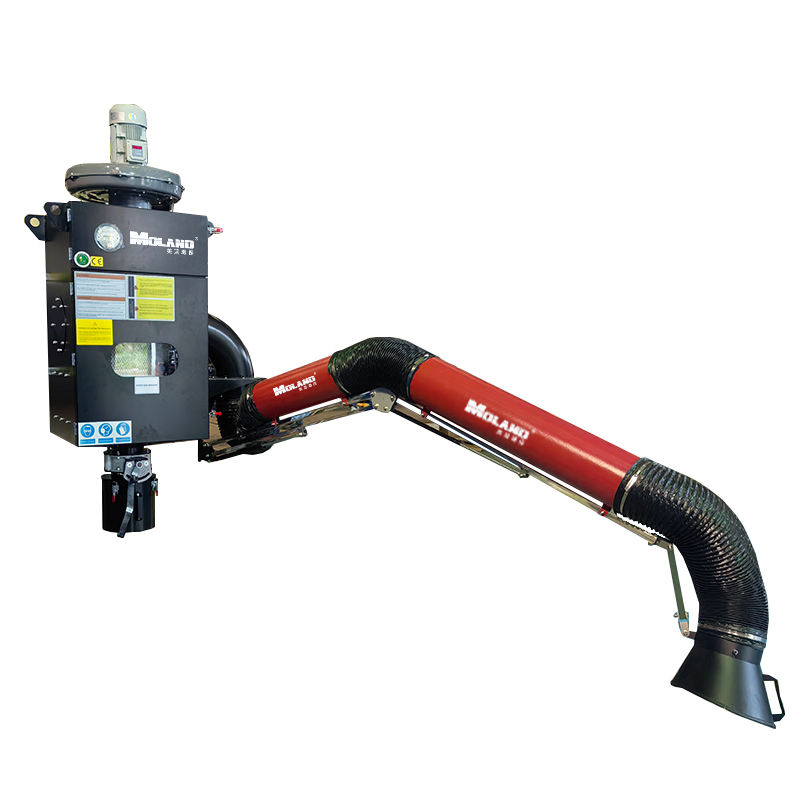

This MLWF200-BGA wall mounted fume extractor is a high-performing fume extraction & filtration kit for everyday applications. Featuring one of externally articulated 3m flexible extraction arm that allows for simple repositioning and maintenance and caputring smoke and dust at generating source. With automatic pulse cleaning system, it can collect and purify dust at high efficiency.

  • Motor Power:2.2kw
  • Air Volume:2000m³/h
  • Flame-retardant Nano filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.
Póngase en contacto
  • Free combination on demand to meet various working conditions

Wall Mounted Fume Extractor

This MLWF200-BGA Wall Mounted Fume Extractor provides the ultimate in flexibility for removing fumes and dust from your work environment. It is equipped with a high-efficiency fan to increase CFM at the extraction point. The large filtering area AHLSTROM filter and automatic pulse cleaning system make the filteration effect better.

Tech Specs

Product model MLWF200-BGA
Power 2.2kw
Working Voltage 380v/50Hz 3P
Air volume 2000m³/h
Filter accuracy 0.3μm
Filter material Flame-retardant Nano filter
Suction Arm ф200*3m
Cleaning Mode Automatic pulse jet cleaning
Filter area 23m²
Noise 75dBA
Dimensions 600*570*1955mm
Weight 225Kg
OEM Acceptable
Certificado CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Ventajas del producto

  • Bajo consumo de energía

    El sistema de control inteligente garantiza el efecto de uso reduciendo al máximo el consumo de electricidad y aire comprimido.

  • Gran volumen de aire

    Utilizamos ventiladores de marcas famosas, de funcionamiento estable y diseñados con baja resistencia al viento para garantizar el efecto de recogida de polvo.

  • Fácil de mantener

    El concepto de diseño está orientado a las personas, con una estructura optimizada, que hace que la limpieza y el mantenimiento diarios sean seguros, cómodos y rápidos.

  • Sin bloqueo

    Utilizando filtros de cartucho importados y un avanzado sistema automático de limpieza de polvo, el efecto de purificación es notable.

  • Personalizable

    Se puede personalizar según los requisitos del cliente, como: piezas, configuración a prueba de explosiones, especificaciones especiales de alimentación, tamaño, color, logotipo, etc.

Industrial Wall-mounted Welding Fume Extractor with Flexible Suction Arm

Dust collectors are devices used to minimize shop dust and keep working spaces clean. Moland dust collection systems are commonly used in metalworking shops to improve air quality by capturing dust and other airborne particles.

  • Independent Electric Control


    1. Independent electric control box, easy to install and operate.
    2. Button operation, simple and easy to use.
    3. Emergency stop button + alarm function ensures your safe production.

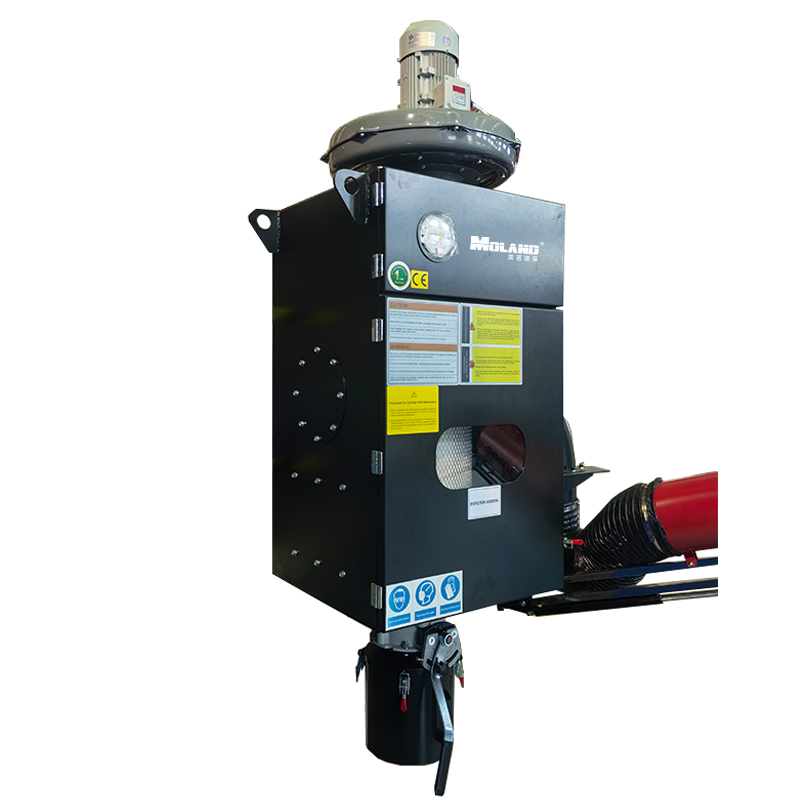

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Flame-retardant Nano Filter


    1. Imported AHALSTROM brand flame-retardant Nano material filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.
    2. Vertical arrangement.

  • Brand-name Fan


    1. Brand-name fans, stable operation, low noise level, high negative pressure.
    2. Customisable voltage to accommodate the voltage requirements of different countries.

  • Large Capacity Dust Bin


    1. Large capacity dust collection bin.
    2. Fitted with valve for convenient dust removal.
    3. Dump the dust inside dust collection bin regularly.

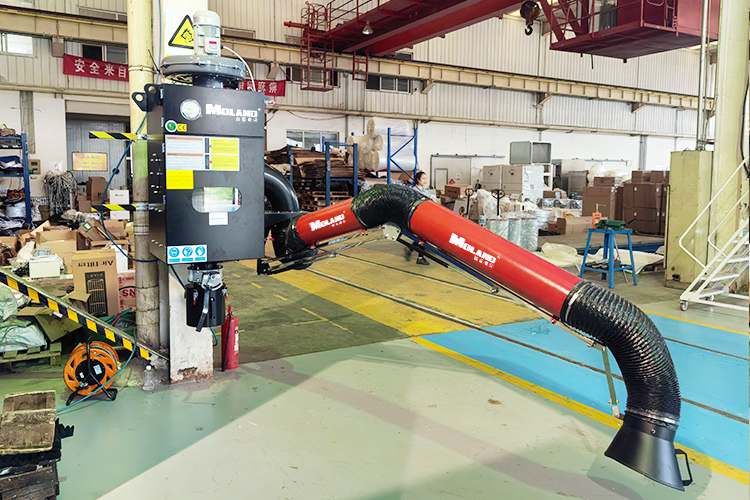

  • Flexible Extraction Arm


    1. The extraction arm has an up and down movement and comes with 360° rotation for ease of adjustments in operation.
    2. Arm size is 200mm*3m, or customized.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
