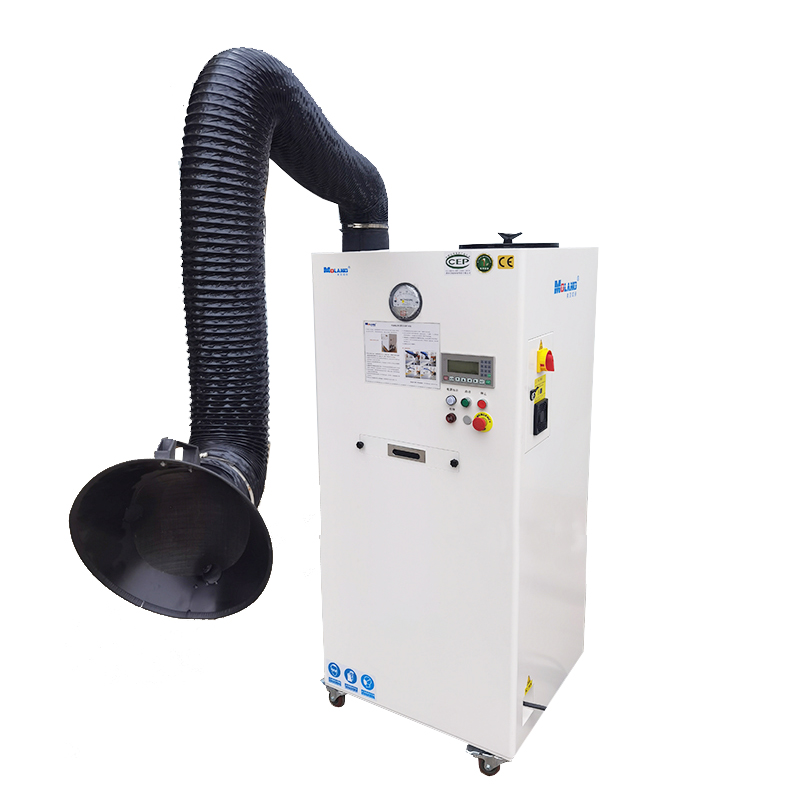

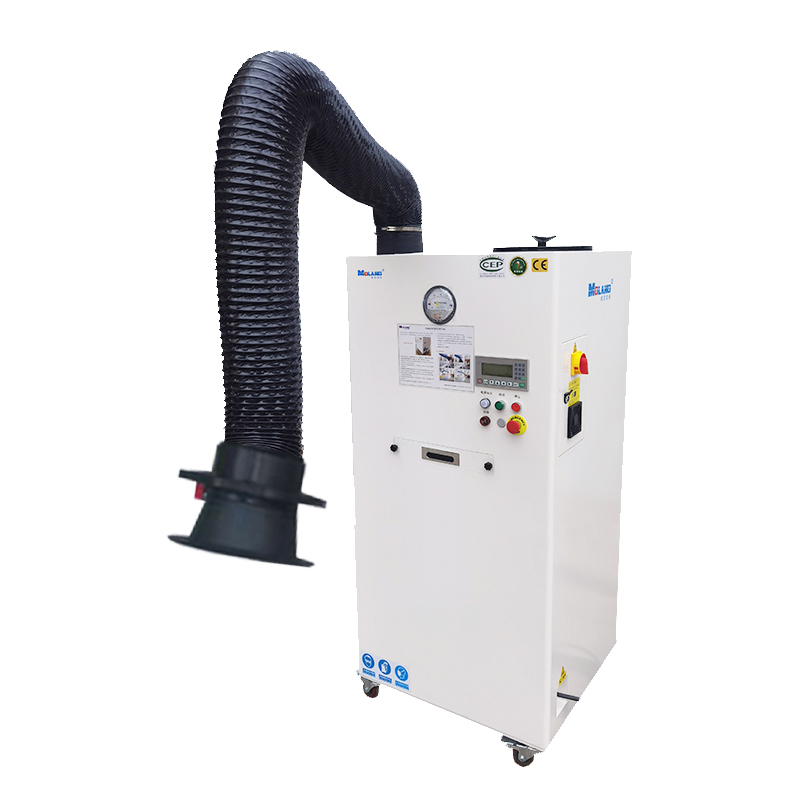

MLWF280FA Plus

Extractor de humos móvil

This MLWF280FA plus movable welding fume extractor is an economical and efficient product for cleaning and dedusting with automatic pulse jet cleaning system and built-in air compressor. The nano cartridge filter has a large filter area to achieve better purification effect.

  • Motor Power:2.2+0.8=3kw
  • Air Volume:2800m³/h
  • Flame-retardant Nano filter
  • Filtration Accuracy: 0.3μm, 99.9%
  • Automatic pulse jet cleaning system
  • Suitable for welding, cutting, grinding and polishing, stirring, drilling, etc.
Póngase en contacto
  • Free combination on demand to meet various working conditions

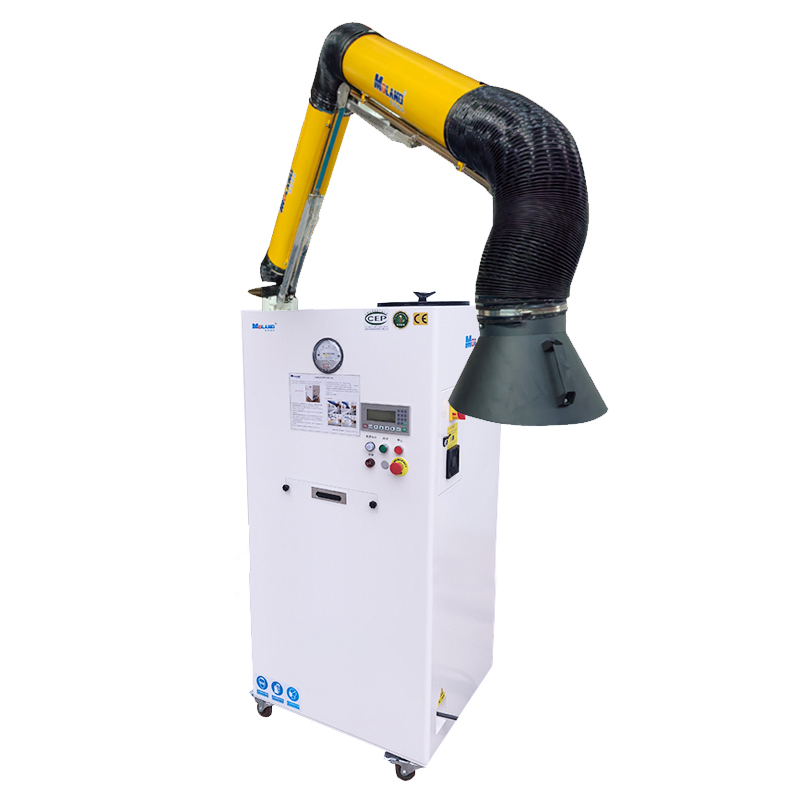

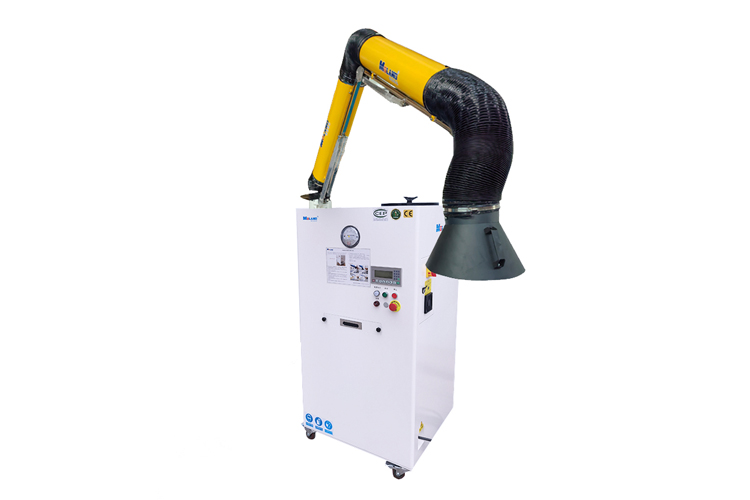

Movable Industrial Dust Collector with Single Suction Arm

This light-duty cartridge filter dust collector provides a flexible, portable fume extraction solution for manual MIG welding/gas metal arc welding/GMAW/stick welding and other dry dust fume collection applications. Universal wheels allow the unit to be easily moved around the shop. With automatic pulse jet cleaning system and small size, this extraction units are ideal for manual welding applications for small-to-medium size fabricators, weld schools and vocational training programs. The built-in air compressor design enables its use in a wider range of scenarios.

Tech Specs

Product model MLWF280FA Plus
Power 2.2+0.8=3kw
Working Voltage 380v/50Hz 3P
Air volume 2800m³/h
Filter accuracy 0.3μm
Filter material Flame-retardant Nano filter
Extraction Arm ф160*3m
Cleaning Mode Automatic pulse jet cleaning
Filter area 23m²
Noise 68±3dBA
Dimensions 750*750*1600mm
Weight 170Kg
OEM Acceptable
Certificado CE, ISO9001, ISO14001, ISO45001
Warranty 1 year

Ventajas del producto

  • Bajo consumo de energía

    El sistema de control inteligente garantiza el efecto de uso reduciendo al máximo el consumo de electricidad y aire comprimido.

  • Gran volumen de aire

    Utilizamos ventiladores de marcas famosas, de funcionamiento estable y diseñados con baja resistencia al viento para garantizar el efecto de recogida de polvo.

  • Fácil de mantener

    El concepto de diseño está orientado a las personas, con una estructura optimizada, que hace que la limpieza y el mantenimiento diarios sean seguros, cómodos y rápidos.

  • Sin bloqueo

    Utilizando filtros de cartucho importados y un avanzado sistema automático de limpieza de polvo, el efecto de purificación es notable.

  • Personalizable

    Se puede personalizar según los requisitos del cliente, como: piezas, configuración a prueba de explosiones, especificaciones especiales de alimentación, tamaño, color, logotipo, etc.

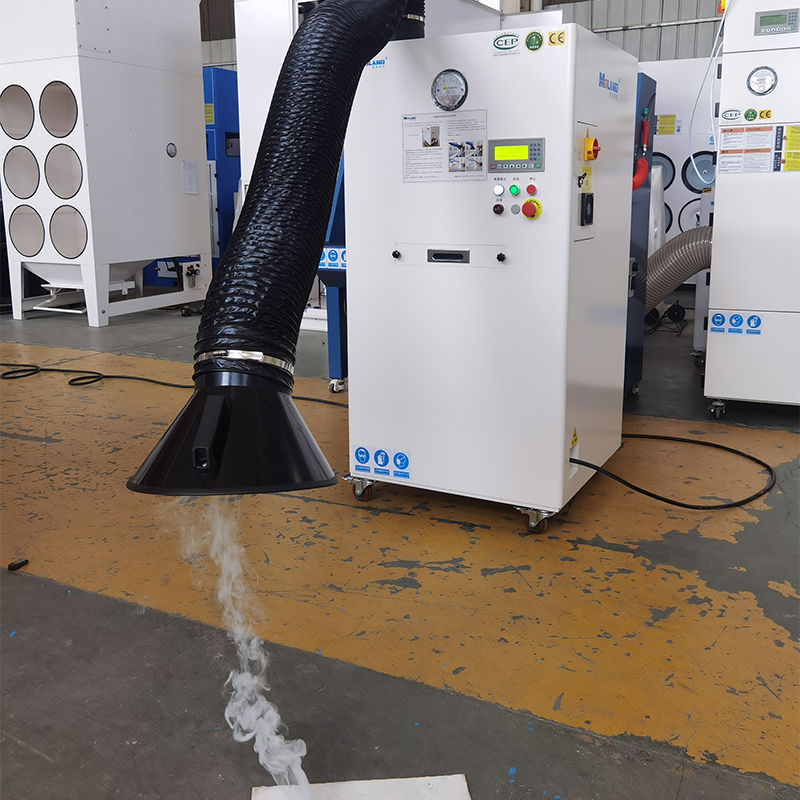

Mobile Welding Fume Extractor

Mobile welding fume extractors go where you need them, suck up what you'd rather not breathe in, and are easily maneuverable for the best effect. The extraction arm is used of self supporting joints, flexible hose and smooth steel tubing make this fume extraction arm easy to work with and keep it near the source of the air contaminants. So contaminants including dust, fumes, smoke and more are removed right at their source.

  • Movable and Simple


    1. The integrated structure has beautiful appearance and small footprint.
    2. The bottom is equipped with Fuma wheels for easy movement and fixation.
    3. Button operation, simple and convenient.

  • Automatic Pulse Jet Cleaning


    1. Fully automatic pulse jet cleaning, each cleaning is completed in about 0.1~0.3s, and the compressed air ejected at this moment has a good cleaning effect. The air enters the filter cartridge and expands rapidly, causing an impact vibration, so that the dust falls into the dust collection bin.

  • Flame-retardant Nano Filter


    1. Imported AHLSTROM brand flame-retardant Nano material filter element, with a filtration accuracy of 0.3 micron and a filtration efficiency of over 99.9%, it can easily achieve standard emission of purified air.
    2. Vertical arrangement.

Frequently Asked Questions

Do you have any questions about our products and how to use them? We have compiled the most frequently asked questions and answered them. If your question is not listed here, please contact us.
Leave a Message
What's the OEM serivce of Moland?
Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
How to install and run the machine?
Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves
How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
What's the package?
We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
